Manholes

Carson Industries is the world's largest manufacturer of structural foam chambers. Continuous efforts are made to improve the service, delivery time and product range to cater for ever changing customer requirements. The dedication to global quality, global service and global commitment is unsurpassed. With more than 35 years experience and in excess of 30 million chambers installed worldwide, Carson Industries has a solution for all applications.

Customized
Solutions

• Chamber furniture/duct entries can be
prefitted, fitted on site or retro fitted
• Chamber dimensions and shapes can be modified to suit customer needs

Reduced
Labour Costs

• Easy to handle
• No skilled labour required
• Easy to drill & cut on site
• Same day installation reduces overnight accidents & insurance claims

Railways/Transportation

• Joint chambers
• Pull chambers
• Junction chambers
• Inspection chambers
• Turning chambers
• Railduct trackside channel
• MultiDuc UTX
(under track crossing) ductbank
• Trackside & UTX chambers
• Full solution for cable
installation

Turf & Irrigation

• Equipment control boxes
• Valve boxes on the majority of
world’s golf courses
• Artificial grass covers
• Bottom grates
• Innovative products: Hosenclose

Utilities – Water,
Gas, Electricity

• Meter chambers
• Water pump chambers
• Inspection chambers
• Pedestal chambers
(customized product)
• Link box chambers
• Distribution box chambers
• Cable installation in electricity plants

Telecom & CATV

• Joint chambers
• Pull chambers
• Junction chambers
• Inspection chambers
• Turning chambers

Carson chambers are used in numerous applications:
Telecom & CATV, Utilities, Turf & Irrigation, Railways
and Transportation

MultiDuc System is the modern way of constructing UTX (Under Track Crossings) and maximising valuable track possessions. MultiDuc consists of a duct bank option with 4, 6 and 9 way options, a broad range of accessories are also available. MultiDuc parts combined with Polyvaults allow Carson customers to achieve significant cost savings in UTX installations. MultiDuc system is the preferred method used by several national rail companies in Europe and the U.S.

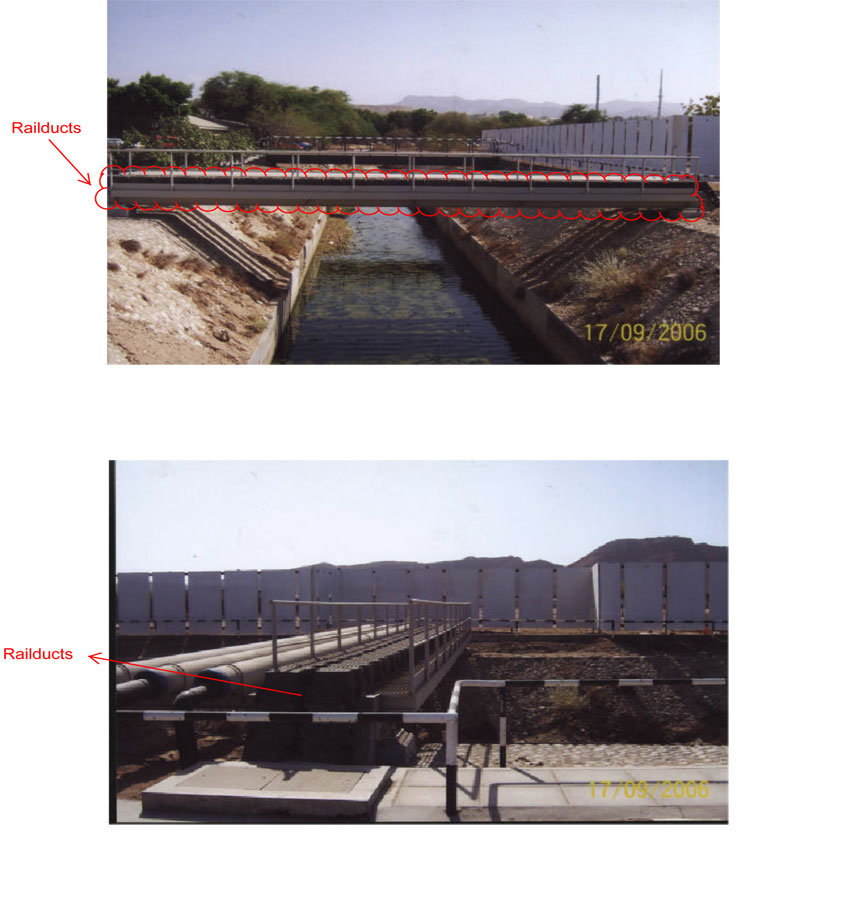

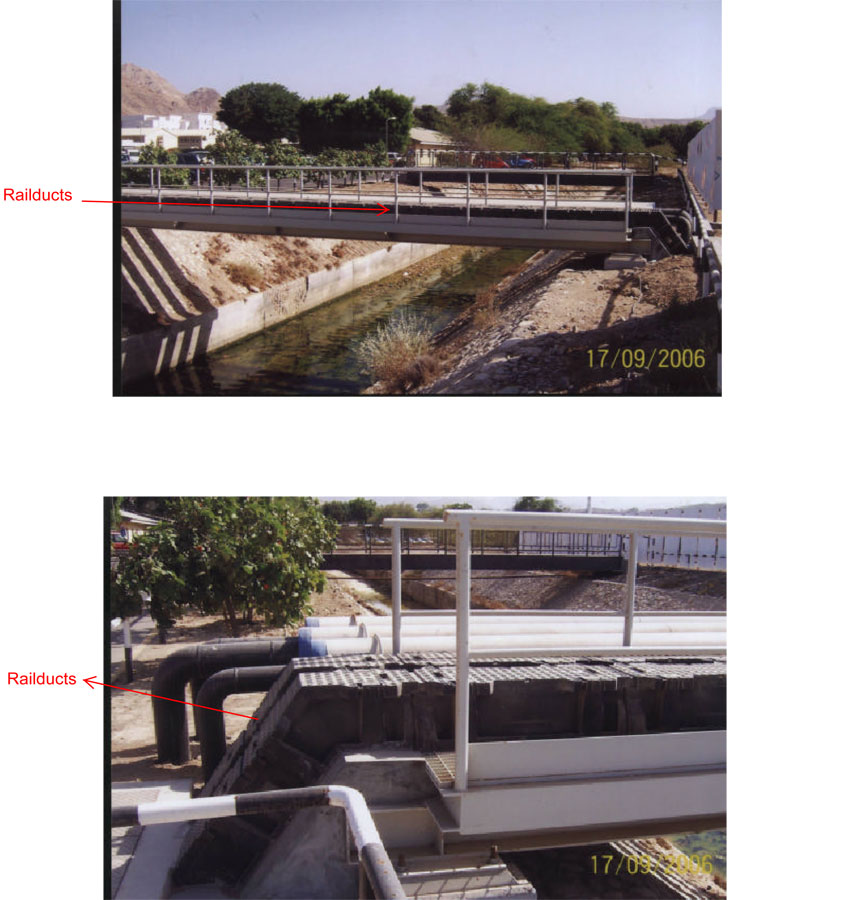

Railduct system is the concrete replacement technology for installation of trackside signalling, fibre optic and telecommunications cable systems for railway projects. Among several other benefits Railduct installation is 4 to 5 times faster than existing technologies.

Chamber Bottom Plates/Floors

• A range of prefitted or freestanding
base plates are available for the Carson
chamber range.
• All chambers can be fitted with bottom
plates, irrespective of size.
• Drainage grates are also available to be
used as floors for the majority of Carson
product range.

Chamber Furniture & Accesories

• Insulation pieces for HDPE covers and midchamber
installation are available for extra
temperature protection
• Step irons, cable bearers & brackets, duct
entries can be pre-fitted, fitted during
installation or retrofitted after installation.
• Accessories for water meter connections can
also be pre-fitted

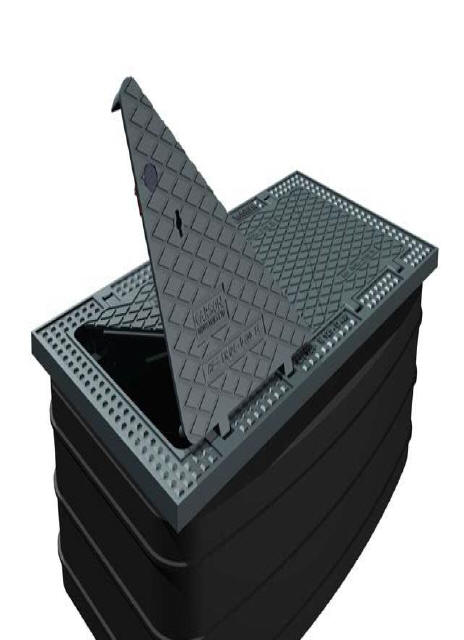

Chamber Covers & Frames

• HDPE, ductile and concrete covers are available
   for Carson chambers
• Customized covers: artificial grass, dyed concrete covers
• Galvanised steel rising frame available on ductile and
   concrete covers to cater for gradients and footpath
   resurfacing
• Customer logos, anti-vandalism security bolts and
   lifting keys available

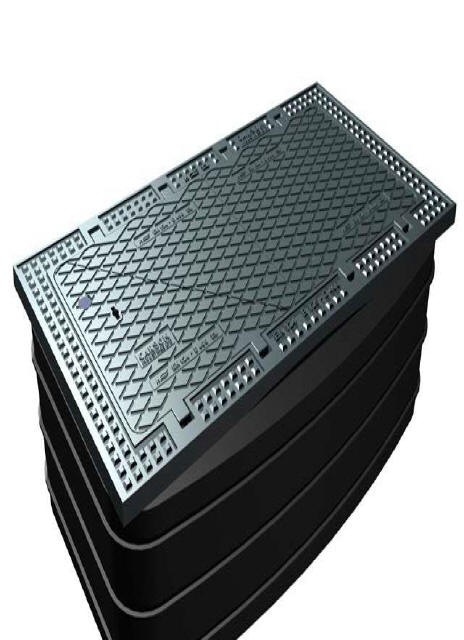

Stackable Ring Chambers

• Chambers consist of 150 mm high rings designed
   to stack into each other
• Cover options in ductile iron and concrete
• Bottom plates/floors
• Suitable for carriageway installations (C2 chamber)
• Unique to market
• Tested & certified for EN124 D600
   applications (C2 chamber)
    • Test replicated 20 years of an industrial zone traffic
       simulating dynamic and static loads
    • Dynamic load on installed chamber: 500,000
       passes by a 40kN truck wheel
    • Static load on free standing chamber:
       600 kN vertical load

Modular Polyvault Series

• Modular chambers allow adjustment, during
   manufacture, in length, width and height to suit project
   requirements
• Modularity allows chambers to be manufactured to
   match the specific dimensions required
• Cover options in HDPE, ductile iron and concrete
• Bottom plates/floors
• Option of using "as-dug", gravel or concrete backfill*

Twin Wall Series

• A broad range of Twin Wall one-piece
   chambers in various lengths, widths and
   heights
• Cover options in ductile iron and concrete
• Drop-in covers without frame
• Bottom plates/floors
• Option of using "as-dug", gravel or
   concrete backfill*

Medium and Small Box Series

• A broad range of one piece chambers
   in various lengths, widths and heights
• Cover options in HDPE, ductile iron and
   concrete
• Extension chambers
• Bottom plates/floors &
   grates
• Insulation pieces
• Option of using
   "as-dug", gravel or
   concrete backfill*.

Value-Added
Solutions

• Carson chambers, covers, frames, rising
   frames, chamber furniture etc offer a
   complete “one stop installation solution”.

Strong
and Resistant

• HDPE material is used
• Foam injection process
• Low pressure moulding reduces stress for a long lasting product
• High resistance to chemical and soil agents

Faster & Cheaper
Installation

• Same day installation completion
• No return to site required
• Faster reopening of footpath
• No expensive lifting equipment
• Consistent quality

Carson Industries was founded in 1969 in La Verne, California (U.S.A). With six manufacturing facilities worldwide, Carson serves a global market. Since 1993 the Carson production facility in Roscommon, Ireland has served the European, African and the Middle Eastern markets with its extensive product range, of over 200 sizes, of underground chambers and accessories.

RAILDUCT INSTALLATION

CARSON MANHOLE

CARSON MANHOLE

CARSON MANHOLE





























































































































































It is the responsibility of the engineer to ensure that the correct product is
specified:
“The appropriate class of manhole top or gully top to be used depends upon
the place of installation. The selection of the appropriate class is the
responsibility of the designer. Where there is any doubt the stronger class
should be selected.”

Clause 5 EN124

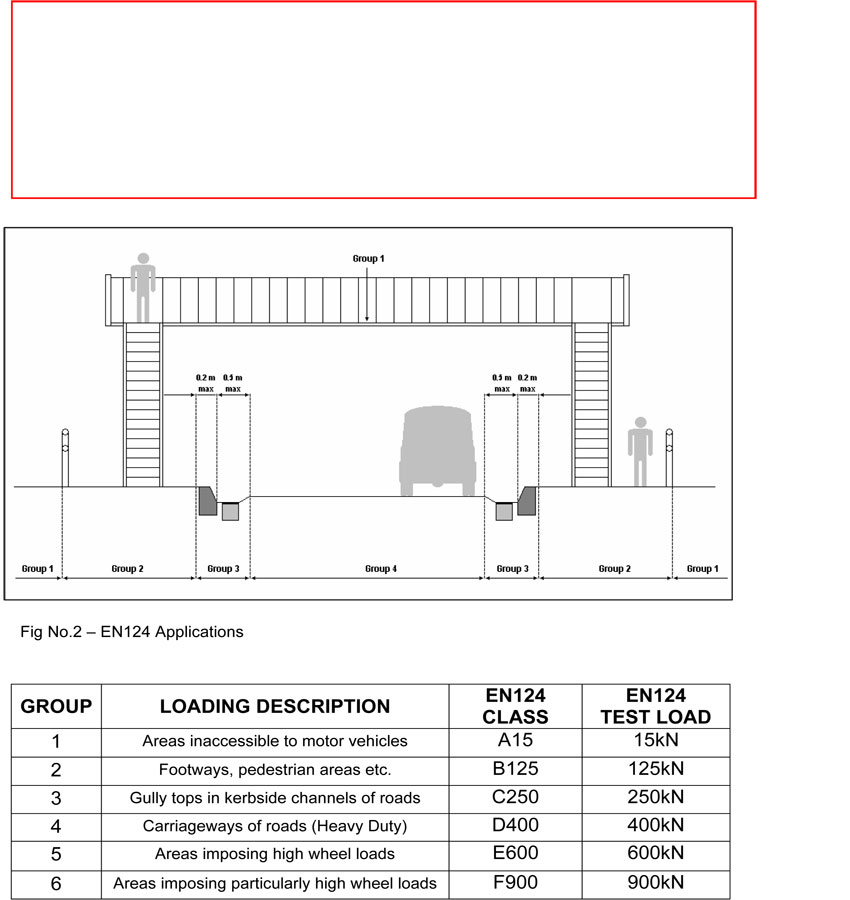

EN124 Standard Classification
Carson box, cover and frame solutions are tested and rated against EN124 standards.
The cover and frame is marked and fully compliant with the standard.
The standard specifies features and strengths to suit different loading profiles found in
public spaces from footpaths to airports.







The less obvious advantages
include:-


               ABU DHABI                  DUBAI                       JAFZA                                                 MUSCAT                                                   DOHA

UAE +971 2 5557351    +971 4 3352995    +971 4 8831401        OMAN  +968 24 750205        QATAR   +974 44150543

• Lighter castings for ease of use
and transportation.
• Reduced risk of injury in
handling.
• Less waste from breakage in
use and installation

Ductile Iron has all the traditional qualities associated with Grey Iron and is chemically almost identical. By treating iron with magnesium, the inherent weak nature of the flake graphite structure is converted to a strong spheroidal graphite structure, known as Ductile Iron.

• The obvious advantages of
specifying and using Ductile Iron
Covers are:-
• Greater Strength
• Higher Impact Resistance
• Better Durability

Ductile Iron is known as
Spheroidal Graphite (SG), or
Nodular Iron.
Ductile Iron is known as
Spheroidal Graphite (SG), or
Nodular Iron.
Iron - Ductile or Grey

Iron covers are formed by casting metal, but the two types used for
covers and frames have very different properties:-









Carson Industries is the world's largest manufacturer of pre-formed access /  manhole chambers and Multi Duc systems, with in excess of 50 million chambers and 1million Multi Ducs installed world-wide, over the past 40 years.

The Carson Industries production facility has been in operation since 1993 and services the European and Middle Eastern markets.

The Carson chamber products are manufactured from High Density Polyethylene, (HDPE), using the unique Structural Foam Moulding process, which produces strong yet lightweight products, which are easy to handle on site and offer significant installation savings. They do not require expensive lifting equipment or concrete backfill surround. The speed of installation makes it possible to complete the installation without having to revisit the site at a later stage.

The products are extensively used across Europe in the Railway (Iarnrod Eireann, LUAS, Network Rail (UK) etc), Telecom & CATV (Eircom, BT, Telewest, NTL, etc), Water, Gas and Electrical utilities, Golf Courses, Drainage, Civil projects etc.

In addition to the standard one piece Small and Medium Box Series, Carson Industries can also offer the modular Polyvault Series. These modular chambers can be adjusted in length, width and height in accordance with your projects specific requirements.

A selection of new 'Ring Stacking Chambers', Ref: Utility Rings, Footway Fortress and Carriageway Fortress, have recently been developed. These chambers enable the contractor to build the chamber to the depth required and are particularly suitable to
applications where the depth of existing duct is unknown or where unforeseen obstacles are uncovered.The Carriageway Fortress is the only chamber, which is certified for use in EN124D400 and EN124E600 roadway applications.

The Structural Foam Moulded HDPE products can be easily cut and drilled on site for duct entries and the fitting of chamber furniture and steps. Alternatively, these duct entries and fittings can be pre-installed at the Carson production facility.

All of the chambers can be fitted with a HDPE, Ductile Iron or Concrete cover and frame, depending on the EN124 loading requirement. These covers can also be fitted with a range of security locks and keys and will carry the relevant customer logo and markings.

Whatever your application, there's a Carson chamber and cover solution that meets your dimension and loading requirements.
