LIHCH
| Cross Section | Conductor Resistance | Capacitance.. | Capacitance.. |
| (Max. Ω/km) | (Core/Core nF/Km) | (Core/Screen nF/Km) | |
| 0.14 mm² | 138.0 | 80 | 120 |
| 0.22 mm² | 85.0 | 100 | 150 |
| 0.25 mm² | 77.8 | 100 | 150 |
| 0.34 mm² | 56.0 | 100 | 150 |
| 0.50 mm² | 39.0 | 110 | 170 |
| 0.75 mm² | 26.0 | 110 | 170 |
| 1.00mm² | 19.5 | 120 | 180 |
| 1.50 mm² | 13.3 | 120 | 180 |
| 2.50 mm² | 7.98 | 140 | 240 |
| Technical and Electrical Properties (20°C) |
| Operating Voltage | 0.14 mm² ... 0.25 mm² | 250V |
| 0.34 mm² ... 1.50 mm² | 300V/500V | |
| 2.50mm²............... .. | 450V/ 750V | |
| Test Voltage | 0.14 mm² ... 0.25 mm² | 1200V |
| 0.34mm² ... 1.00mm² | 1500V | |
| 1.50mm² ............... . | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Inductance | Approx. 0.65 mH/ Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -30°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 7 .5x Cable Diameter |
| Flexible | 15 x Cable Diameter |

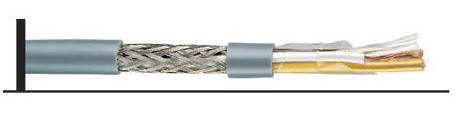

| Construction | ||
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/8S 6360 Class 5, 0.34 mm² : Column 3) | |
| Insulation | HFFR (EN 50290-2/ HD 624.6 S1 /VDE 0207-HI2), Color Code : DIN 4710D | |
| Lay-up | All cores as layers | |
| Separator | PES Tape | |
| Screen | Tinned Copper Wire Braiding (70% Coverage) (EN 50288) | |
| Outer Sheath | HFFR (EN 50290-2/ HD 624.7 S1/VDE 0207- HM 2) Outer Sheath Color : RAL7001 Grey | |
| Reference Standards | VDE 0812 | |
| FlameTest | IEC60332-1, VDE 0482-265-2-1 | |
| Smoke Emission | IEC 61 D34-2/ EN50268 (HD606) / 8S7622 | |
| CorrosNe Gas Measurement | IEC60754-2/ EN50267 IHD602l | |
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
2.50mm² |
|||||
21402502 | 2x2.50 | 8.3 | 57.8 | 115 |
21402503 | 3x2.50 | 8.9 | 84.1 | 146 |
21402504 | 4x2.50 | 10.0 | 113.4 | 193 |
21402505 | 5x2.50 | 11.0 | 137.7 | 231 |
21402506 | 6x2.50 | 11.9 | 162.9 | 270 |
21402507 | 7x2.50 | 11.9 | 188.5 | 306 |
21402508 | 8x2.50 | 13.1 | 211.0 | 344 |
21402509 | 9x2.50 | 14.2 | 236.3 | 387 |
21402510 | 10x2.50 | 15.6 | 262.0 | 438 |
21402512 | 12x2.50 | 16.0 | 307.7 | 503 |
21402514 | 14x2.50 | 17.0 |
354.8 | 583 |
21402516 | 16x2.50 | 18.0 | 401.1 | 663 |
21402518 | 18x2.50 | 19.0 | 448.0 | 721 |
21402520 | 20x2.50 | 20.0 | 495.0 | 795 |
LIHCH
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.34mm² |
|||||
| 21400402 | 2x0.34 | 4.6 | 13.7 | 31 | |
| 21400403 | 3x0.34 | 4.9 | 17.1 | 38 | |
| 21400404 | 4x0.34 | 5.4 | 21.5 | 47 | |
| 21400405 | 5x0.34 | 5.8 | 25.1 | 55 | |
| 21400406 | 6x0.34 | 6.3 | 29.5 | 63 | |
| 21400407 | 7x0.34 | 6.3 | 32.8 | 69 | |
| 21400408 | 8x0.34 | 6.8 | 37.2 | 77 | |
| 21400409 | 9x0.34 | 7.3 | 42.8 | 86 | |
| 21400410 | 10x0.34 | 7.9 | 48.9 | 96 | |
| 21400412 | 12x0.34 | 8.4 | 58,5 | 114 | |
| 21400414 | 14x0.34 | 8.7 | 66.5 | 129 | |
| 21400416 | 16x0.34 | 9.3 | 74,1 | 144 | |
| 21400418 | 18x0.34 | 9.8 | 83.0 | 161 | |
|
21400420 |
20x0.34 |
10.3 | 90.7 | 176 | |
|
21400425 |
25x0.34 |
11.4 |
110.0 |
211 |
|
| 0.50mm² | |||||
| 21400502 | 2x0.50 | 5.1 | 16.6 | 38 | |
| 21400503 | 3x0.50 | 5.4 | 21.0 | 46 | |
| 21400504 | 4x0.50 | 5.9 | 27.3 | 58 | |
| 21400505 | 5x0.50 | 6.5 | 32.3 | 71 | |
| 21400506 | 6x0.50 | 7.1 | 38.9 | 83 | |
| 21400507 | 7x0.50 | 7.1 | 44.2 | 90 | |
| 21400508 | 8x0.50 | 7.8 | 51.3 | 109 | |
| 21400509 | 9x0.50 | 8.2 | 56.0 | 116 | |
| 21400510 | 10x0.50 | 8.9 | 61.7 | 122 | |
| 21400512 | 12x0.50 | 9.3 | 71.0 | 145 | |
| 21400514 | 14x0.50 | 10.0 | 80.5 | 160 | |
|
21400516 |
16x0.50 |
10.8 | 90.0 | 186 | |
| 21400518 | 18x0.50 | 11.3 | 99.5 | 203 | |
|
21400520 |
20x0.50 |
12.0 | 108.6 | 218 | |
|
21400525 |
25x0.50 |
13.0 | 134.0 | 265 | |
| 0.75mm² | |||||
| 21400802 | 2x0.75 | 5.6 | 22.0 | 49 | |
| 21400803 | 3x0.75 | 5.9 | 29.0 | 58 | |
| 21400804 | 4x0.75 | 6.5 | 36.2 | 75 | |
| 21400805 | 5x0.75 | 7.1 | 45.2 | 91 | |
| 21400806 | 6x0.75 | 7.8 | 54.1 | 104 | |
| 21400807 | 7x0.75 | 7.8 | 63.3 | 117 | |
| 21400808 | 8x0.75 | 8.6 | 70.0 | 137 | |
| 21400809 | 9x0.75 | 9.4 | 78.0 | 147 | |
| 21400810 | 10x0.75 | 10.1 | 90.3 | 165 | |
| 21400812 | 12x0.75 | 10.5 | 105.0 | 184 | |
| 21400814 | 14x0.75 | 11.0 | 120.0 | 212 | |
|
21400816 |
16x0.75 |
11.7 | 135.0 | 241 | |
| 21400818 | 18x0.75 | 12.3 | 150.0 | 268 | |
|
21400820 |
20x0.75 |
13.2 | 164.0 | 288 | |
|
21400825 |
25x0.75 |
14.6 | 198.0 | 350 | |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
0.14mm² |
|||||
| 21400102 | 2x0.14 | 3.8 | 7.6 | 21 | |
| 21400103 | 3x0.14 | 4.0 | 10.2 | 26 | |
| 21400104 | 4x0.14 | 4.2 | 11.8 | 29 | |
| 21400105 | 5x0.14 | 4.6 | 13.3 | 32 | |
| 21400106 | 6x0.14 | 5.1 | 15.3 | 39 | |
| 21400107 | 7x0.14 | 5.1 | 17.0 | 41 | |
| 21400108 | 8x0.14 | 5.3 | 19.5 | 45 | |
| 21400109 | 9x0.14 | 5.7 | 22.1 | 50 | |
| 21400110 | 10x0.14 | 6.1 | 24.2 | 55 | |
| 21400112 | 12x0.14 | 6.3 | 27.5 | 61 | |
| 21400114 | 14x0.14 | 6.6 | 30.6 | 69 | |
| 21400116 | 16x0.14 | 7.0 | 33.7 | 77 | |
| 21400118 | 18x0.14 | 7.3 | 37.3 | 85 | |
| 21400120 | 20x0.14 | 7.7 | 42.8 | 94 | |
| 21400125 | 25x0.14 | 8.4 | 53.7 | 113 | |
| 0.22mm² | |||||
| 21400202 | 2x0.22 | 4.0 | 10.1 | 24 | |
| 21400203 | 3x0.22 | 4.2 | 12.7 | 30 | |
| 21400204 | 4x0.22 | 4.5 | 15.3 | 35 | |
| 21400205 | 5x0.22 | 4.8 | 18.0 | 42 | |
| 21400206 | 6x0.22 | 5.4 | 20.4 | 48 | |
| 21400207 | 7x0.22 | 5.4 | 22.4 | 51 | |
| 21400208 | 8x0.22 | 5.7 | 25.7 | 55 | |
| 21400209 | 9x0.22 | 6.2 | 29.0 | 62 | |
| 21400210 | 10x0.22 | 6.7 | 34.1 | 70 | |
| 21400212 | 12x0.22 | 7.0 | 38.3 | 79 | |
| 21400214 | 14x0.22 | 7.5 | 43.5 | 88 | |
| 21400216 | 16x0.22 | 7.8 | 48.8 | 98 | |
| 21400218 | 18x0.22 | 8.2 | 54.1 | 109 | |
| 21400220 | 20x0.22 | 8.5 | 58.8 | 120 | |
|
21400225 |
25x0.22 |
9.6 | 76.6 | 151 | |
| 0.25mm² | |||||
| 21400302 | 2x0.25 | 4.3 | 11.0 | 26 | |
| 21400303 | 3x0.25 | 4.5 | 13.9 | 31 | |
| 21400304 | 4x0.25 | 4.8 | 16.8 | 36 | |
| 21400305 | 5x0.25 | 5.1 | 20.0 | 42 | |
| 21400306 | 6x0.25 | 5.6 | 23.1 | 48 | |
| 21400307 | 7x0.25 | 5.6 | 25.5 | 52 | |
| 21400308 | 8x0.25 | 6.4 | 28.5 | 58 | |
| 21400309 | 9x0.25 | 6.6 | 31.5 | 63 | |
| 21400310 | 10x0.25 | 6.9 | 34.7 | 68 | |
| 21400312 | 12x0.25 | 7.2 | 41.4 | 80 | |
| 21400314 | 14x0.25 | 7.5 | 48.2 | 92 | |
| 21400316 | 16x0.25 | 8.1 | 57.0 | 113 | |
| 21400318 | 18x0.25 | 8.5 | 64.5 | 119 | |
| 21400320 | 20x0.25 | 9.0 | 70.0 | 130 | |
|
21400325 |
25x0.25 |
10.1 | 82.4 | 158 | |
LIHCH
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) |
|
1.00mm² |
||||
21401002 | 2x1.00 | 6.0 | 27.8 | 57 |
21401003 | 3x1.00 | 6.3 | 37.6 | 72 |
21401004 | 4x1.00 | 7.1 | 47.8 | 89 |
21401005 | 5x1.00 | 7.7 |
59.1 | 108 |
21401006 | 6x1.00 | 8.4 | 68.8 | 125 |
21401007 | 7x1.00 | 8.4 | 78.8 | 136 |
21401008 | 8x1.00 | 9.1 | 95.2 | 162 |
21401009 | 9x1.00 | 10.1 | 106.6 | 179 |
21401010 | 10x1.00 | 10.7 | 115.5 | 194 |
21401012 | 12x1.00 | 10.9 | 135.0 | 222 |
21401014 | 14x1.00 | 11.8 | 154.4 | 253 |
21401016 | 16x1.00 | 12.5 | 172.0 | 290 |
21401018 | 18x1.00 | 13.3 | 191.0 | 316 |
21401020 | 20x1.00 | 14.0 | 218.4 | 359 |
21401025 | 25x1.00 | 15.7 | 262.5 | 430 |
|
1.50mm² | ||||
21401502 | 2x1.50 | 7.0 | 38.9 | 75 |
21401503 | 3x1.50 | 7.4 | 53.0 | 95 |
21401504 | 4x1.50 | 8.2 | 67.8 | 118 |
21401505 | 5x1.50 | 9.1 | 84.0 | 146 |
21401506 | 6x1.50 | 9.9 | 99.8 | 173 |
21401507 | 7x1.50 |
9.9 | 112.5 | 189 |
21401508 | 8x1.50 | 10.8 | 132.3 | 232 |
21401509 | 9x1.50 | 11.7 | 151.2 | 251 |
21401510 |
10x1.50 | 12.7 | 166.9 | 280 |
21401512 | 12x1.50 | 13.4 | 192.0 | 318 |
21401514 | 14x1.50 | 14.1 | 222.6 | 370 |
21401516 |
16x1.50 | 15.0 | 252.0 | 421 |
21401518 | 18x1.50 | 15.7 | 278.0 | 453 |
21401520 | 20x1.50 | 16.7 | 306.6 | 498 |
21401525 | 25x1.50 | 18.7 | 372.0 | 611 |
Applications
These screened cables are used as signal transmission cables in the indoor applications. They can be easi~ used with their flexible construction in narrow applications like: electronic control systems of computer or audio systems or in communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Screening . protects the cable from the outer electrical effects. These cables have HFFR material in their construction and they don't burn easily and the flames go off by themselves. The have low smoke intensity and they don't emit poisonous and corrosive gases. They are used in buildings where there are important goods or human population.
