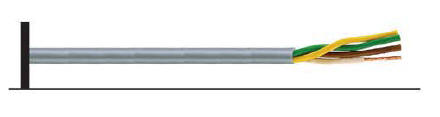

LIY11Y
| Cross Section | Conductor Resistance | Capacitance |
| (Max. Ω/km) | (Core/Core nF/Km) | |
| 0.50 mm² | 39.0 | 110 |
| 0.75 mm² | 26.0 | 110 |
| 1.00mm² | 19.5 | 120 |
| 1.50 mm² | 13.3 | 120 |
| Technical and Electrical Properties (20°C) | ||
| Operating Voltage | 0.50 mm² ... 1.50 mm² | 300V/500V |
| 2.50mm²............... .. | 450V/ 750V | |
| Test Voltage | 2500V | |
| Insulation Resistance | Min. 200 M.Ohm x Km | |
| Current Carrying Capacity | See Technical Data Table 4 | |
| Temperature Range | Fixed | -40°C .. + 70°C |
| Flexible | -5°C . . + 70°C | |
| Minimum Bending Radius | Fixed | 7 .5x Cable Diameter |
| Flexible | 10 x Cable Diameter | |
| Construction | |
| Conductor | Stranded Electrolytic Annealed Copper (IEC 228/VDE0295/HD383/BS 6360 Class 5) |
| Insulation | PVC (EN 50290-2/ HD 21 .1 .S4/VDE 0281-TI2). Color Code : DIN 47100 |
| Lay-up | All cores as layers |
| Separator | PES Tape |
| Outer Sheath | PUR (HD22.10.51/VDE0250/ 0282) Outer Sheath Color: RAL7001 Grey |
| Reference Standards | VDE 0245 |
| Flame Test | IEC60332-1, VDE 0482-265-2-1 |
| Oil Resistant | HD22.10.S1/VDE 0282-10 |
| Hydrolysis Resistant | VDE0282-10 |
| Cold Resistant | HD 22.10.S1/VDE 0282-10 |
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) |
| 0.50mm² | ||||
| 21000502 | 2x0.50 | 4.7 | 8.3 | 24 |
| 21000503 | 3x0.50 | 5.0 | 12.6 | 31 |
| 21000504 | 4x0.50 | 5.3 | 16.8 | 39 |
| 21000505 | 5x0.50 | 5.9 | 20.9 | 47 |
| 21000506 | 6x0.50 | 6.5 | 25.1 | 57 |
| 21000507 | 7x0.50 | 6.5 | 29.4 | 64 |
| 21000508 | 8x0.50 | 7.3 | 33.8 | 74 |
| 21000509 | 9x0.50 | 7.7 | 38.0 | 82 |
| 21000510 | 10x0.50 | 8.3 | 42.2 | 89 |
| 21000512 | 12x0.50 | 8.7 | 51.1 | 105 |
|
21000516 |
16x0.50 |
10.0 | 68.1 | 144 |
|
21000520 |
20x0.50 |
11.0 | 86.0 | 170 |
|
21000525 |
25x0.50 |
12.0 | 108.0 | 215 |
|
0.75mm² |
||||
| 21000802 | 2x0.75 | 5.1 | 12.4 | 29 |
| 21000803 | 3x0.75 | 5.5 | 18.6 | 40 |
| 21000804 | 4x0.75 | 6.0 | 25.2 | 51 |
| 21000805 | 5x0.75 | 6.6 | 31.5 | 61 |
| 21000806 | 6x0.75 | 7.3 | 37.6 | 75 |
| 21000807 | 7x0.75 | 7.3 | 44.3 | 83 |
| 21000808 | 8x0.75 | 8.0 | 50.6 | 94 |
| 21000809 | 9x0.75 | 8.8 | 57.0 | 111 |
| 21000810 | 10x0.75 | 9.5 | 63.5 | 123 |
| 21000812 | 12x0.75 | 9.9 | 76.6 | 145 |
|
21000814 |
14x0.75 |
10.5 | 89.5 | 169 |
|
21000816 |
16x0.75 |
11.1 | 102.4 | 189 |
|
21000818 |
18x0.75 |
11.7 | 115.3 | 207 |
|
21000820 |
20x0.75 |
12.5 | 128.4 | 230 |
|
21000825 |
25x0.75 |
14.0 | 161.2 | 295 |
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543
| PART NUMBER | NO OF CORES/CROSS SECTION (mm² ) | CABLE DIAMETER (mm) | COPPER WEIGHT (Kg/Km) | CABLE WEIGHT (Kg/Km) | |
|
1.00mm² |
|||||
| 21001002 | 2x1.00 | 5.6 | 16.6 | 37 | |
| 21001003 | 3x1.00 | 6.0 | 24.8 | 49 | |
| 21001004 | 4x1.00 | 6.6 | 33.1 | 64 | |
| 21001005 | 5x1.00 | 7.2 | 41.6 | 78 | |
| 21001006 | 6x1,00 | 7.9 | 50.1 | 93 | |
| 21001007 | 7x1.00 | 7.9 | 58.5 | 104 | |
| 21001008 | 8x1.00 | 8.6 | 66.9 | 119 | |
| 21001009 | 9x1,00 | 9.5 | 75.6 | 137 | |
| 21001010 | 10x1.00 | 10.2 | 84.3 | 156 | |
| 21001012 | 12x1.00 | 10.5 | 102.2 | 181 | |
|
21001014 |
14x1.00 |
11.3 | 119.2 | 210 | |
|
21001016 |
16x1.00 |
12.1 | 136.2 | 236 | |
|
21001018 |
18x1.00 |
12.7 | 154.0 | 264 | |
|
21001020 |
20x1.00 |
13.6 | 171.9 | 295 | |
|
21001025 |
25x1.00 |
15.0 | 214.9 | 355 | |
|
1.50mm² 13.6 |
|||||
| 21001502 | 2x1.50 | 6.6 | 24.8 | 52 | |
| 21001503 | 3x1.50 | 7.1 | 37.6 | 73 | |
| 21001504 | 4x1.50 | 7.7 | 50.2 | 91 | |
| 21001505 | 5x1.50 | 8.6 | 63.3 | 114 | |
| 21001506 | 6x1,50 | 9.4 | 75.7 | 133 | |
| 21001507 | 7x1.50 | 9.4 | 88.3 | 151 | |
| 21001508 | 8x1.50 | 10.4 | 100.9 | 170 | |
| 21001509 | 9x1,50 | 11.3 | 113.5 | 195 | |
| 21001510 | 10x1.50 | 12.2 | 126.6 | 223 | |
| 21001512 | 12x1.50 | 13.0 | 152.8 | 262 | |
|
21001514 |
14x1.50 |
13.6 | 178.3 | 300 | |
|
21001516 |
16x1.50 |
14.3 | 205.6 | 340 | |
|
21001520 |
20x1.50 |
16.3 | 257.1 | 430 | |
|
21001525 |
25x1.50 |
18.3 | 321.4 | 530 | |
|
2.50mm² |
|||||
| 21002502 | 2x2.50 | 7.9 | 41.2 | 79 | |
| 21002503 | 3x2.50 | 8.5 | 61.9 | 109 | |
| 21002504 | 4x2.50 | 9.4 | 83.3 | 143 | |
| 21002505 | 5x2.50 | 10.6 | 104.1 | 179 | |
LIY11Y
Applications
These cables with PUR outer sheath are resistant to weather conditions. solvents, oil and oil derivatives and have high mechanical resistance. They are used in industrial applications and in factories in critical points for signal transmission. They are used in electronic control systems of in communication sector, electronic circuits. measurement devices, machine design, office equipments. computer systems where a resistance to friction . impact and mechanical restrain on the edges is required. They can be used in wet or dry, open air applications for middle scale mechanical restraint.
