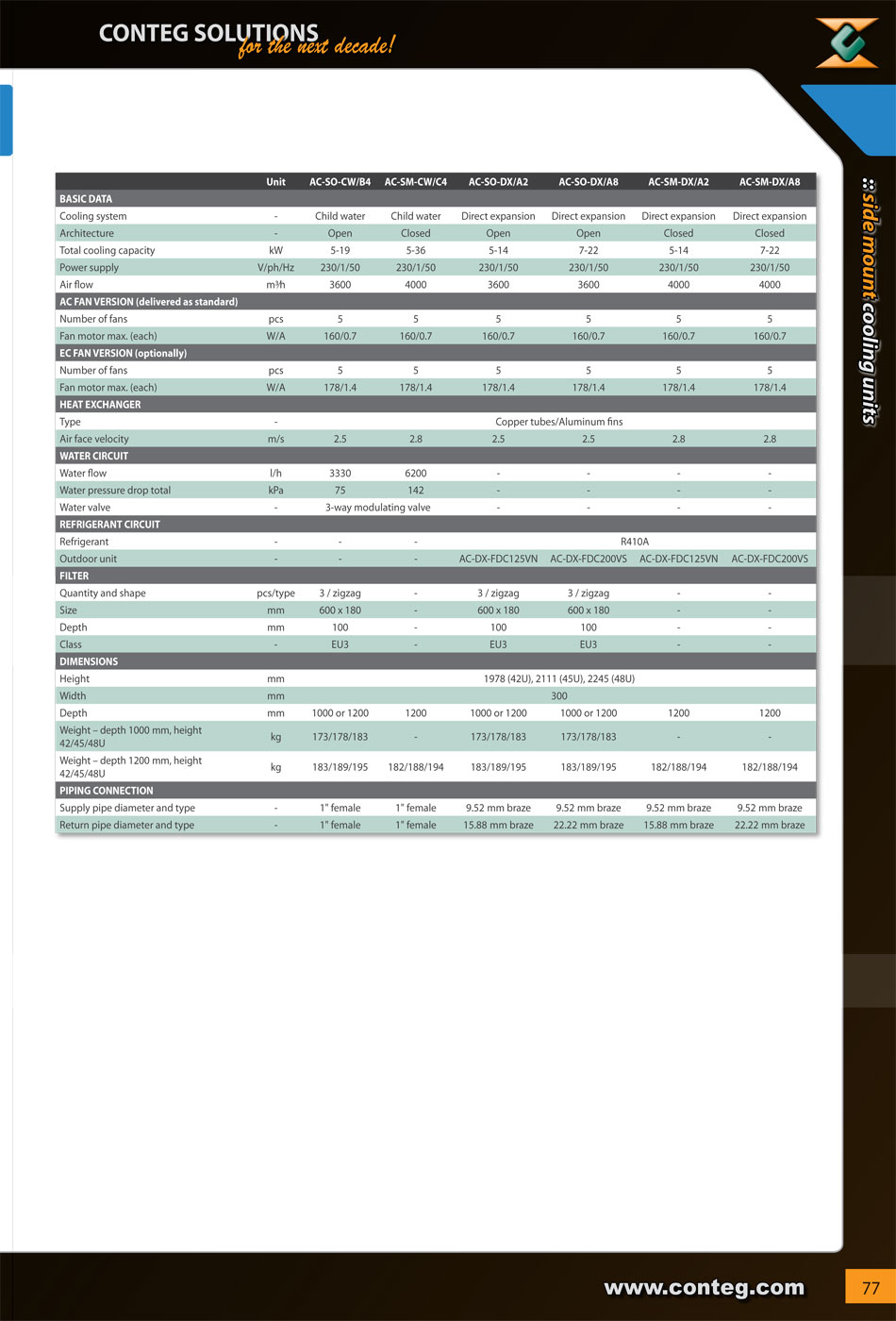

Closed architecture: water temperature 7/12 °C, air inlet temperature 45 °C
Refrigerant (CW): water without additives
Presented nominal cooling capacity is valid under nominal conditions only:
45 45 2111
48 48 2245
A8 20 kW DX
B4 19.3 kW1 CW
C4 36 kW2 CW
*Add ‑T in the end of the cooling unit’s code for top connection of water piping (bottom connection as standard); drain pump is standard part of delivery
Add ‑EC in the end of the cooling unit’s code for having EC (enhanced) fans in your cooling unit
(example: AC‑SO‑CW/B4‑45‑30/120‑TEC = side mount cooling unit, open architecture, chilled water, 19.3kW, (H/W/D) 45U/300mm/1200mm, top connection of piping, EC fans)
AC‑SO‑DX/A2‑42‑30/100*
120 1200
DX Direct expansion
SM Closed architecture 1
FOLLOW THE STEPS TO SET UP DESIRED SIDE MOUNT COOLING UNITS PRODUCT CODE!

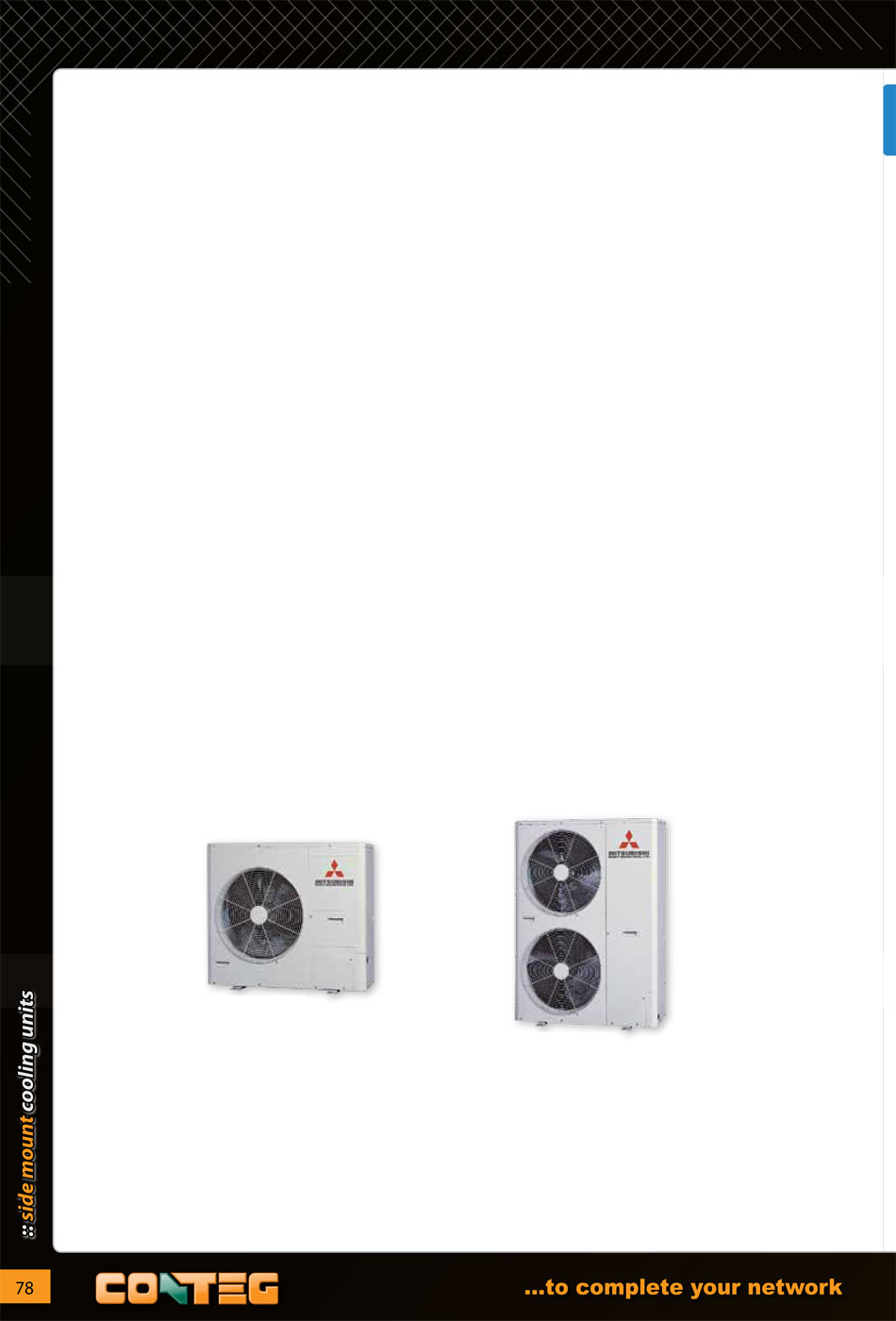

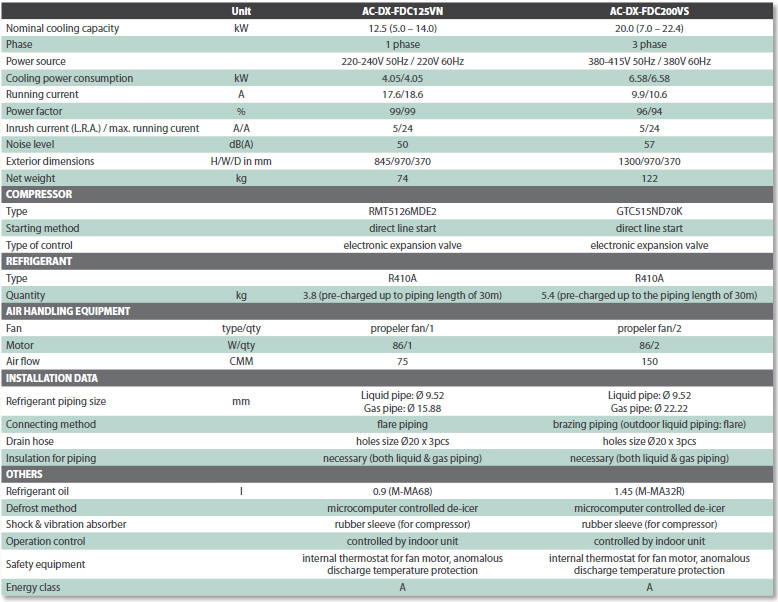

• Plumbed to either outdoor condensers or the central chilled water systems. Pipes are laid below raised floor and routed to the chilled water or condenser installations
• EC fans available upon request
• Top connection (bottom as standard) of pipes with coolant available upon request
ORDERING AND SHIPPING INFORMATION: Configure the side mount cooling unit, which will meet your requirements. The below displayed ordering matrix will help you in creating the part number. As soon as you have the part number, please contact your distributor of CONTEG products. Please note,that all SIDE MOUNT COOLING UNITS ARE DELIVERED FULLY ASSEMBLED and palletized!
• Height: 42, 45 or 48U
• Width: 300mm
• Depth: 1000 or 1200mm (1000mm not applicable for closed loop)
• Welded frame construction from 1.5 & 2mm sheet steel
• Available in Direct Expansion (DX) and Chilled Water (CW) variants
• Electronic Control Board – cooling and chilled air throughput are
DESCRIPTION
Contact us for more information on this cooling solution

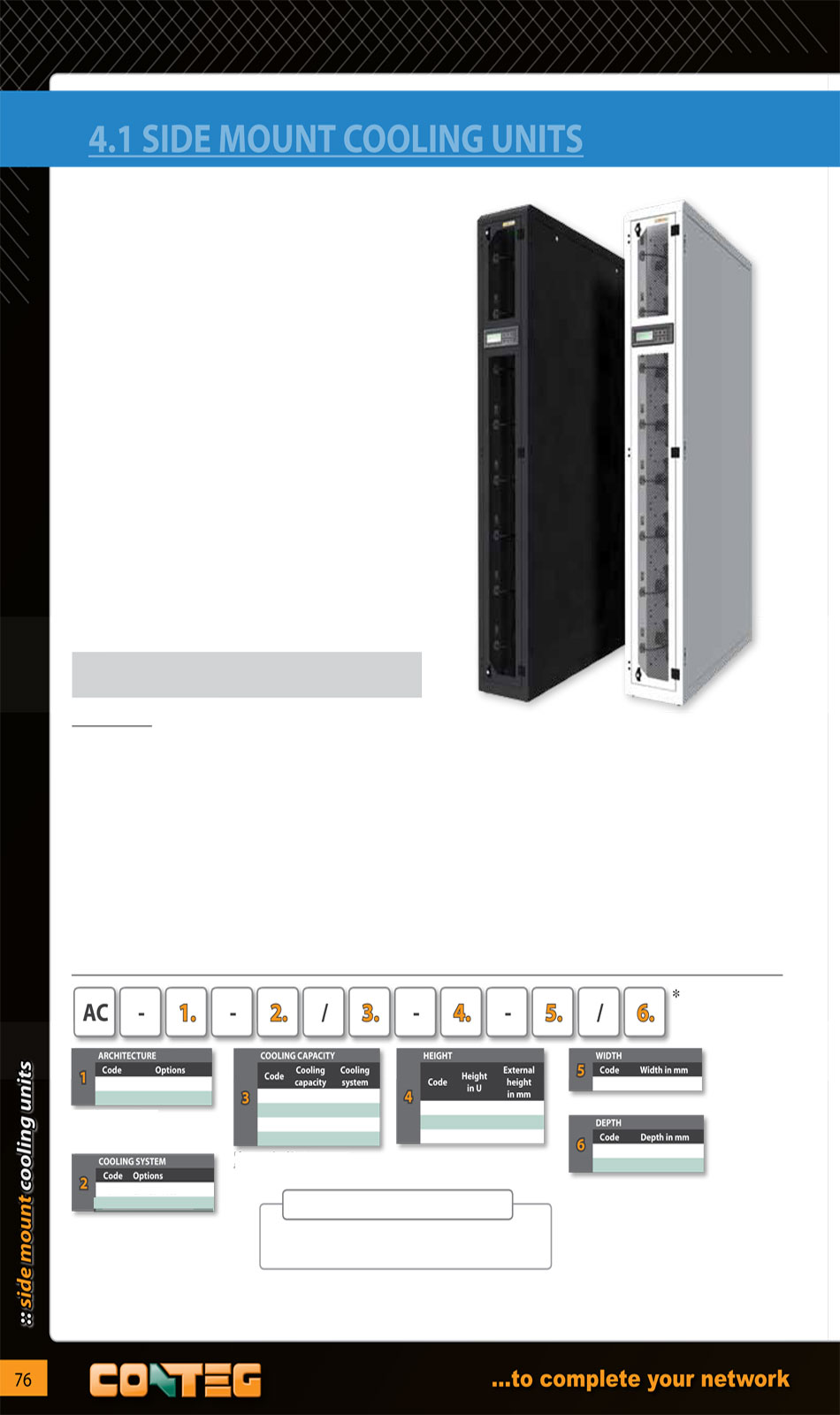

4.1 SIDE MOUNT COOLING UNITS
CONTEG Side Mount Targeted Cooling is available in both closed and open air loop configurations. The Open Architecture units can be deployed in the cabinet row to deliver cooling air directly to the cold aisle. Closed Architecture units provide the ultimate in available cooling with capacities up to 36kW.
OPEN AIR LOOP ARCHITECTURE is ideally suited for use in hot/cold and contained cold aisle deployments and can be used to supplement the existing cooling system within a facility to add capacity on a zone by zone basis. Warm air is sucked directly from the hot aisle, cooled by the side mounted cooling units before being delivered back into the cold aisle for use by the equipment. The range of available capacities means that it is now easy to meet zone cooling requirements in a hot/cold aisle deployment without over‑cooling the entire facility. Furthermore, side cooling can be combined with the CONTEG contained cold or hot aisle solution to further promote efficient use of chilled air leading to reduced facility operational costs.
CLOSED AIR LOOP ARCHITECTURE is ideally suited for very high heat density racks where traditionally delivered cooling air may not provide sufficient capacity for the very high thermal loads generated by equipment placed in the racks. Additionally, the side mount closed architecture ensures that heat generated within the cabinet is removed at the point of production and not released into the data center environment, thereby minimizing the chances of localized hot‑spots forming in the high density zones.
