No. |
Quantity |
|
| IFS – 10 Splicer | IFS-10 | 1 |
| High Precision Cleaver | VF-78 | 1 |
| Battery Pack | LBT-20 | 1 |
| Battery Charger | JS-126300-X | 1 |
| Power Cable | ACC-25 | 1 |
| Spare-electrodes | E-27 | 1 |
| Carrying case | NBX-35 | 1 |
| Cooling tray | CG-22 | 1 |
| Cigarette lighter cable | CJ-11 | 1 |
| RS-232 Cable | RS-11 | 1 |
ABU DHABI DUBAI JAFZA MUSCAT DOHA
UAE +971 2 5557351 +971 4 3352995 +971 4 8831401 OMAN +968 24 750205 QATAR +974 44150543

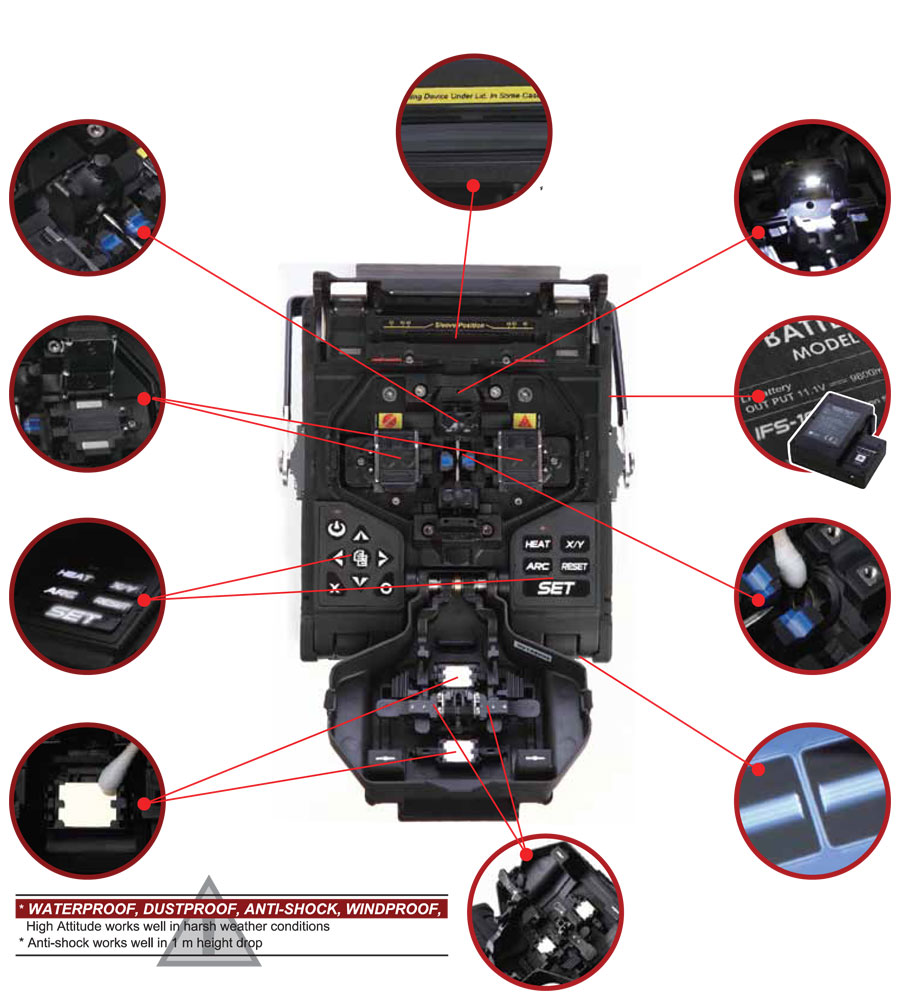

*Easy electrodes exchange
*Easy to clean the mirror (Anti-fog treated mirror
*Illuminated key pad. Ultra durable more than 1 million times
*Easy changeable Holder for Multifunctional Splicing
*Independent clamp motion
*Friendly smart GUI
*Clear core image
*Protected by Tempered glass LCD
*Easy to clean the camera
*Battery: Typical 350 cycles
*Bright led night
*Heating oven with zoom window
*Easy electrodes exchange
The Characteristic of IFS-10
Specifications:
- 2.2kg (without battery), light and handy, user friendly, easy to operate
- Splicing Method: Core alignment
- Applicable fiber: SM(ITU-TG, 652), MM(ITU-TG, 651), DS(ITU-T G, 653), NZDS(ITU-T G, 655), G657A, G657B
- Average loss: SM(0.02dB), MM(0.01dB), DS(0.04dB), NZDS(0.04dB)
- Return loss: >>60 dB
- Splice time: SM fusion average 9s
- Cleaved length: The fiber whose coat-diameter is less than 0.25mm: 8-16mm the fiber whose coat-diameter is larger than 0.25mm: least 16mm
- Operating environment: elevation 0-5000meter, 95% relative humidity, -10~50°C
- Magnification: XY style: 150 power, X/Y: 200 power
- Monitor: 2CCD camera system, 5 inch LCD
- Splice programs: 100 user mode
- Coating diameter: 100-1000um
- Cladding diamater: 80-150um
- Splice memory: max 2000 records
- Fiber display: X/Y or XY, single X.Y
- Pull test: 1.96~2.25N (standard)
- Heating programs: Preset 10 heating modes
- Heating time: FP-03 typical heating time 30s
- Protection sleeve: 60mm, 40mm
- Battery: Typical full cycle 350 times
- Power supply: AC 100-240V input or, DC 10-15V
- Data output: USB master device and COM
- Wind protection: The max wind speed 15m/s
- size: 155x130x143mm (excluding rubber bumper
Standard Package Kit
Brand and Make - Inno Instrument - Korea

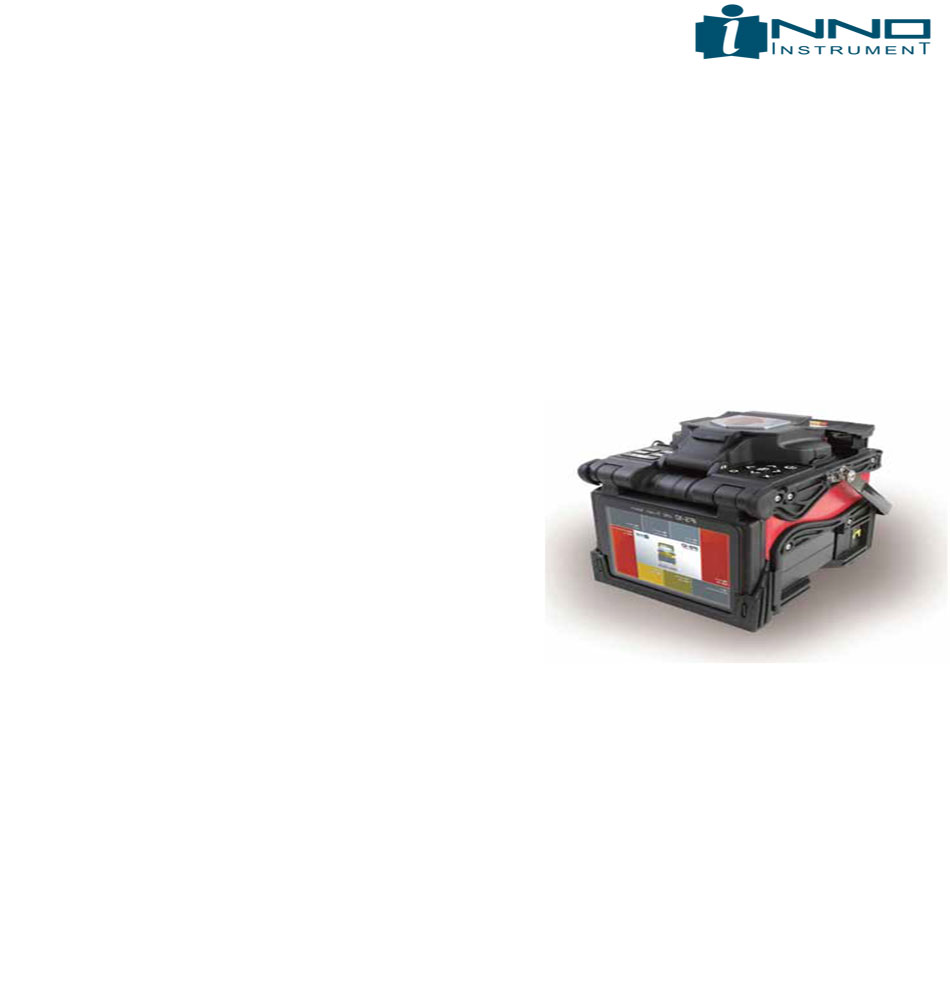

IFS-10, Arc Fusion Splicer
