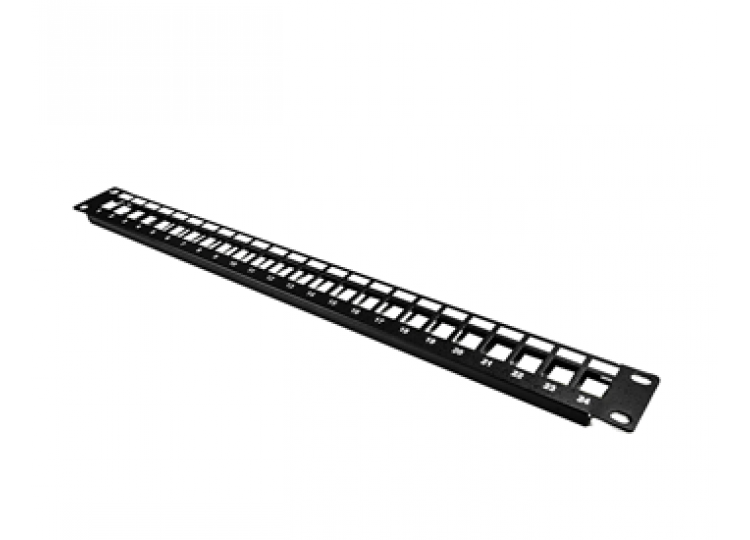

UTP patch panel is an enhanced performance patch panel used for transmission of high-speed data, digital and analogue voice and video RGB signals on LANs. Designed for 22-26 AWG solid conductors with Horizontal termination.

Features:

• UTP CAT6 1U patch panel with 12,16 and 24 ports.
• 19" mountable.
• Designed for 22-26 AWG solid conductors.
• Horizontal termination.

Specifications:

• IDC-PC UL94V-0.
• PCB-FR-4 1.60 mm (0.06") two impenetrable layers.
• Housing: ABS 94V-0.
• Contacts: 0.35 mm (0.014") phosphor bronze with 1.27-micron (50 micro inches) gold coating on contact area.
• Metal housing: 1.50 mm dense metal.
• Color pattern of conductors according to T568B & T568A.
• Numerical display of ports on the front side of the panel with supplementary space for assigning numbers.
• Color and numerical display of IDC modules at the panel rear.
