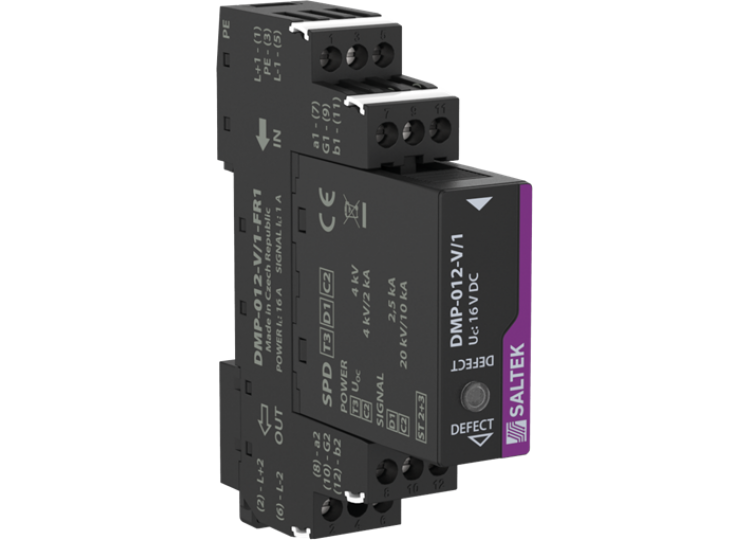

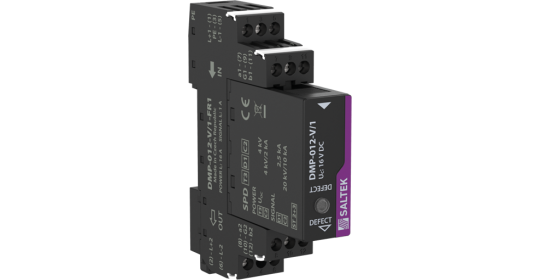

Pluggable module, coupling impedance (R – resistance) in part of data, line separated from protective earth via GDT
- Combination of two-stage surge protection of 2-core signalling line in data part and surge protection for ELV in supply part
- Installation close to protected equipment
- For protection of interfaces of I&C, electronic security and fire detection systems, etc., mainly for measuring circuits and sensors where signal and supply are transmited in one cable, against surge voltage
Specifications:
|
Parameter name |
Parameter value |
|
|
Cross-section
of connected conductors solid (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
4.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
2.50 mm2 |
|
|
Fault
indication |
red indicator |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 70 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001473 |
|
|
Plug
module |
DMP-012-V/1-0 |
|
|
Nominal
voltage |
Un |
12 V AC |
|
Maximum
operating voltage |
Uc |
11.00 V AC |
|
Maximum
operating voltage |
Uc |
16.00 V DC |
|
Nominal
load current |
IL |
16.000 A |
|
Maximum
overcurrent protection |
16 A gL/gG nebo B 16 A |
|
|
C2
nominal discharge current (8/20 µs) core-core |
In |
2.00 kA |
|
Test
voltage L+ - L- |
4.0 kV |
|
|
Test
voltage L+(L-)-PE |
4.0 kV |
|
|
Test
voltage M-PE |
4.0 kV |
|
|
voltage
protection level L+ - L- |
0.18 kV |
|
|
voltage
protection level L+(L-)-PE |
0.95 kV |
|
|
voltage
protection level M-PE |
0.75 kV |
|
|
C2
voltage protection level mode M-PE at In |
750.00 V |
|
|
C2
voltage protection level mode core-PE at In |
Up |
950 V |
|
C2
voltage protection level mode core-core at In |
Up |
180 V |
|
Response
time L+ - L- |
25 ns |
|
|
Response
time L+(L-)-PE |
100 ns |
|
|
Response
time M-PE |
100 ns |
|
|
Nominal
voltage |
Un |
12 V DC |
|
Maximum
operating voltage |
Uc |
11.00 V AC |
|
Maximum
operating voltage |
Uc |
16.00 V DC |
|
Nominal
load current |
IL |
1.000 A |
|
Treshold
frequency core-core |
f |
2.00 MHz |
|
Serial
resistance per core |
R |
0.80 Ω |
|
C2
nominal discharge current (8/20 µs) GND-PE |
10.00 kA |
|
|
C2
nominal discharge current (8/20 µs) per core |
In |
10.00 kA |
|
C2
total discharge current (8/20 µs) cores-PE |
ITotal |
20.00 kA |
|
C3
nominal discharge current (10/1000 µs) GND-PE |
10.00 A |
|
|
C3
nominal discharge current (10/1000 µs) core-PE |
10.00 A |
|
|
C3
nominal discharge current (10/1000 µs) core-core |
In |
10 A |
|
C3
voltage protection level mode GND-PE at 1 kV/µs |
550.00 V |
|
|
C3
voltage protection level mode core-GND at 1 kV/µs |
22.00 V |
|
|
C3
voltage protection level mode core-core at 1 kV/µs |
Up |
22 V |
|
Response
time core-core |
ta |
1 ns |
|
Response
time core-GND |
1 ns |
|
|
Response
time GND-PE |
100 ns |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090557982 |
Dimensions:
Replacement module: DMP-012-V/1-0
Combination of surge protections for signal and supply lines, 12 V DC, pluggable module, floating
