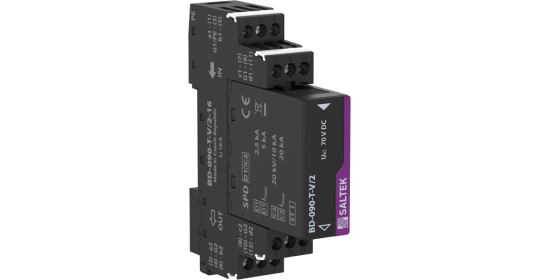

Type
of SPD
|
|
D1,C2
|
|
Location
of SPD
|
|
ST 1
|
|
Mounting
|
|
DIN rail 35 mm
|
|
Maximum
operating voltage
|
Uc
|
50.00 V AC
|
|
Maximum
operating voltage
|
Uc
|
70.00 V DC
|
|
Nominal
load current
|
IL
|
16.000 A
|
|
Treshold
frequency core-core
|
f
|
120.00 MHz
|
|
D1
impulse discharge current (10/350 µs) per core
|
Iimp
|
2.50 kA
|
|
D1
total discharge current (10/350 µs) cores-PE
|
ITotal
|
5.00 kA
|
|
C2
nominal discharge current (8/20 µs) per core
|
In
|
10.00 kA
|
|
C2
total discharge current (8/20 µs) cores-PE
|
ITotal
|
20.00 kA
|
|
C3
voltage protection level mode core-PE at 1 kV/µs
|
Up
|
550 V
|
|
C3
voltage protection level mode core-core at 1 kV/µs
|
Up
|
550 V
|
|
Response
time core-core
|
ta
|
100 ns
|
|
Response
time core-PE
|
ta
|
100 ns
|
|
Connection
(input - output)
|
|
terminals-terminals
|
|
Cross-section
of connected conductors solid (min)
|
|
0.14 mm2
|
|
Cross-section
of connected conductors solid (max)
|
|
4.00 mm2
|
|
Cross-section
of connected conductors stranded (min)
|
|
0.14 mm2
|
|
Cross-section
of connected conductors stranded (max)
|
|
2.50 mm2
|
|
Range
of ambient temperatures (min/max)
|
|
-40 / 70 °C
|
|
According
to standard
|
|
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012
|
|
ETIM
Class
|
|
EC001466
|
|
Plug
module
|
|
BD-090-T-V/2-0
|
|
Customs
tariff number
|
|
85363030
|
|
EAN
|
|
8595090555506
|
