Product details:

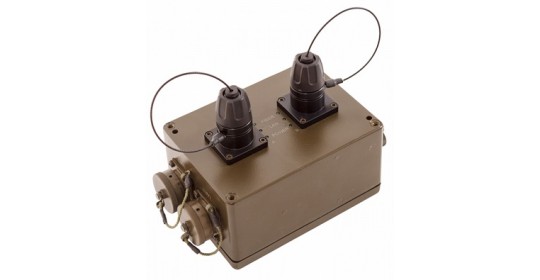

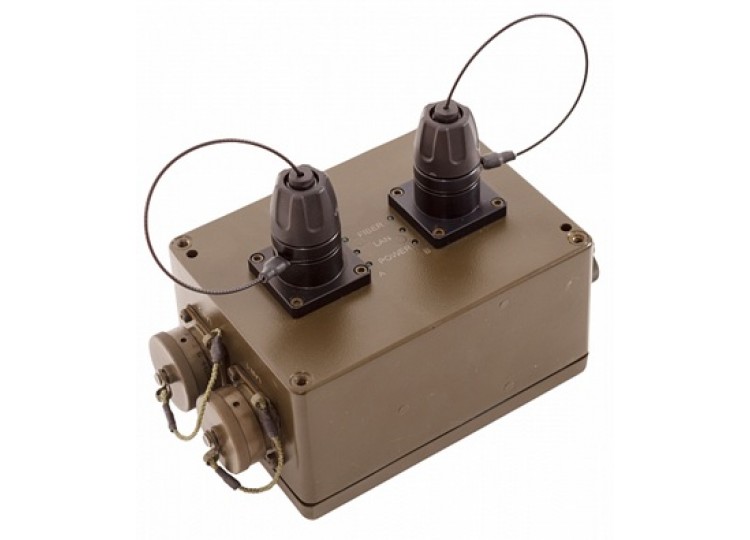

The LMC series introduces the media converter housed in a robust metal box. It provides Expanded Beam connectors for fiber optic cable and copper twisted pairs ports for harsh environmental conditions. The LMC rugged design extends the use of Ethernet in harsh environmental conditions – heavy industry, petrochemical, mines, broadcasting and other field applications. It meets the demands for mobility, easy installation and the mechanical resistance necessary for deployment in the field. The LMC converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity up to 2 km over MM fiber, up to 50 kilometers if use the SM fiber. LED indicators show the power status of the converter, LAN port and fiber activity.

Converter management allows easy configuration via a web interface according to the requirements of the network infrastructure. The basic LMC-02.GF design includes two independent media converters in one box. The optical and electrical ports of both converters are terminated at separate connectors, HMA type for FO, rugged RJ-45 for copper LAN interface. Power supply for both converters is ensured via one connector.

Features:

• Two 1G managed media converters in rugged box.
• 10/100/1000BASE-T to 1000BASE-(L)X converter.
• Auto-Cross over for MDI/MDIX in TP port.
• Auto-Negotiation or Manual mode in TP port.
• Support flow control Enable or Disable.
• Support Jumbo Frame 16K Packet.
• Ingress/Egress Bandwidth control.
• Support 802.3ah-OAM/IP in-band management.
• Management Password Setting.
• Dying gasp (remote power failure detection).
• Support Link Fault Pass Through (LFPT) Function.
• Support Auto Laser Shutdown (ALS) Function.
• Web management při stand-alone.
• Support 16 Tag VLAN Group.
• RMON counters.

Typical applications:

• Temporary installations.
• Military tactical networks.
• Petrochemical and heavy industry.
• Disaster control.
