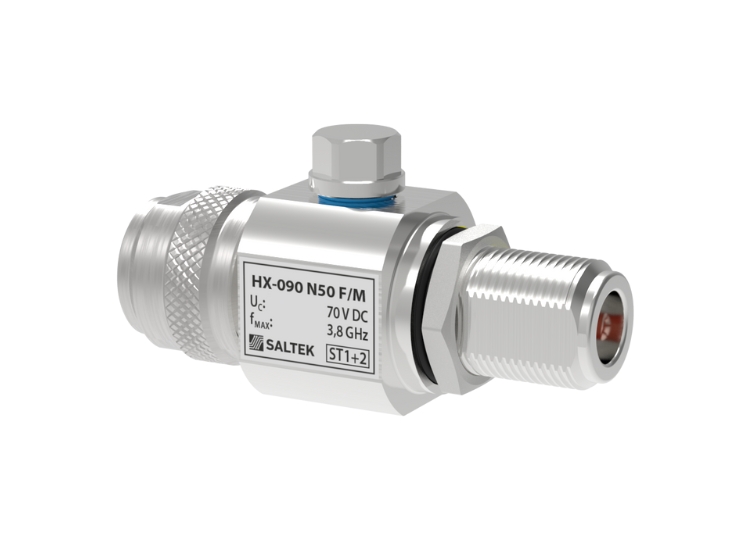

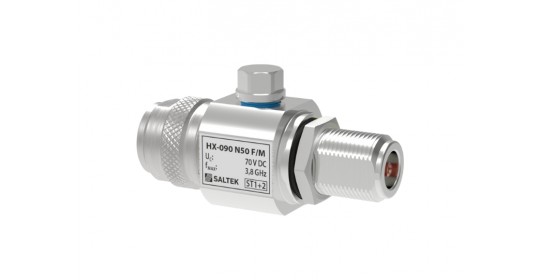

• HX-090 N50 F/M

N50 connectors

Protection of coaxial lines and telecommunication equipment. Installation at the boundary of LPZ 0 and LPZ 1 zones at the line input into the building. Suitable for the combined signal installation and power supply.

Parameters

Type of SPD



D1,C2,C3

Location of SPD



ST 1+2

Maximum operating voltage

Uc

70 v DC

Nominal load current

IL

6,000 A

C2 nominal discharge current (8/20 µs) core-PE

In

10,00kA

D1 impulse discharge current (10/350 µs) core-PE

Iimp

2,50kA

C3 voltage protection level mode core-PE at 1 kV/µs

Up

600v

Response time core-PE

ta

100ns

Power

P

95w

Wave impedance

Z

50Ω

Bandwidth - min

f

0,00MHZ

Bandwidth - max

f

3 500,00 MHz

Insertion attenuation



0,10 dB

SWR



1,2







Connection (input - output)



N 50

Degree of protection



IP 66

Range of operating temperatures - min



-40 °C

Range of operating temperatures - max



-80 °C

According to standard



EN 61643-21+A1,A2:2013, EN IEC 61643-21+A1,A2:2012

ETIM Class



EC001466
