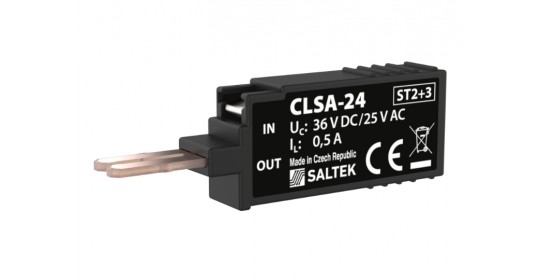

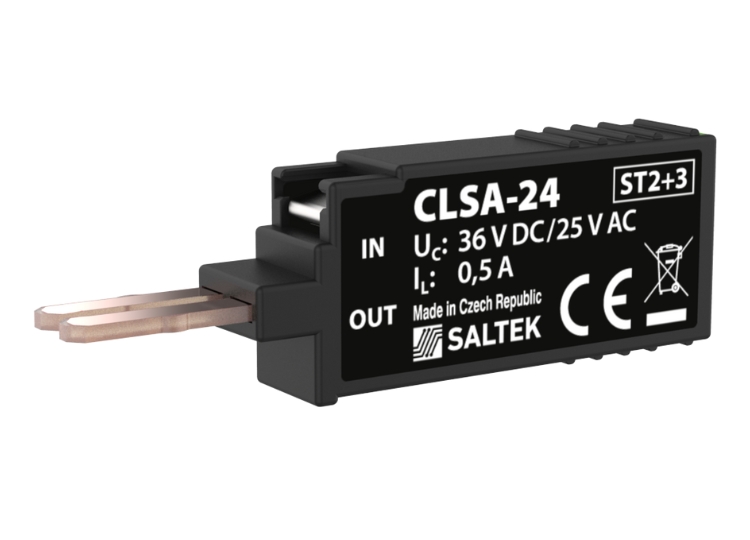

• CLSA-24

Combination of coarse and fine protection of data and M&C lines. For LSA separating strips.

Technical specifications

Type of SPD



C3,C2

Connection (input - output)



LSA disconnection rail

Accessories



grounding rail

Location of SPD



ST 2+3

Maximum operating voltage

Un

25V AC

Maximum operating voltage

Uc

36V DC

Nominal load current

IL

0,500A

C2 nominal discharge current (8/20 µs) per core `

In

500kA

C2 total discharge current (8/20 µs) cores-PE

ITotal

10,00kA

C2 voltage protection level mode core-PE at In

Up

400V

C3 voltage protection level mode core-core at 1 kV/µs

Up

48V

C3 voltage protection level mode core-PE at 1 kV/µs

Up

350V

Response time core-core

ta

1ns

Response time core-PE

ta

100ns

Serial resistance per core

R

1,60Ω

Treshold frequency core-core

f

4,00MHz

Degree of protection



IP 20

Range of operating temperatures - min



-40 °C

Range of operating temperatures - max



70 °C

Mounting



LSA disconnection rail

According to standard



EN 61643-21+A1,A2:2013, EN IEC 61643-21+A1,A2:2012

ETIM Class



EC001625
