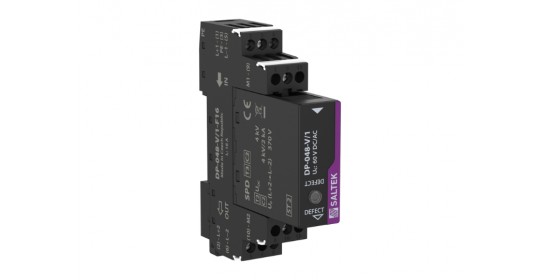

• DP-048-V/1-F16

Protection of power supply with output from the midle and non-grounded pole, also for powwer suply with one pole grounded. Installation as close as possible to the protected equipment

Technical specifications

Type of SPD



T3, C2

Connection (input - output)



terminals-terminals

Location of SPD



ST 2

Nominal voltage

Un

48V AC

Maximum operating voltage

Uc

60V AC and 60V DC

Nominal load current

IL

16,000A

C2 nominal discharge current (8/20 µs) per core

In

2,00kA

C2 voltage protection level mode core-core at In

Up

370V

C2 voltage protection level mode core-PE at In

Up

200v

Test voltage L+ - L-



4,0kV

Test voltage L+(L-)-PE



4,0kV

voltage protection level L+ - L-



0,37 kV

voltage protection level L+(L-)-PE



0,27 kV

voltage protection level M-PE



0,75 kV

Maximum overcurrent protection



16 A gL/gG or B 16 A

Response time L+ - L-



25ns

Response time L+(L-)-PE



100ns

Response time M-PE



100ns

Cross-section of connected conductors solid (min)



0,14mm2



Cross-section of connected conductors solid (max)



4,00 mm2

Cross-section of connected conductors stranded (min)



0,14 mm2

Cross-section of connected conductors stranded (max)



2,50 mm2

Fault indication



red indicator

Degree of protection



IP 20

Range of operating temperatures - min



-40 °C

Range of operating temperatures - max



-70 °C

Mounting



DIN rail 35 mm

According to standard



EN 61643-21+A1,A2:2013, EN IEC 61643-21+A1,A2:2012, EN 61643-11:2012, IEC 61643-11:2011
