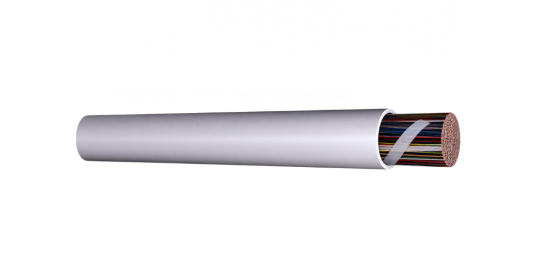

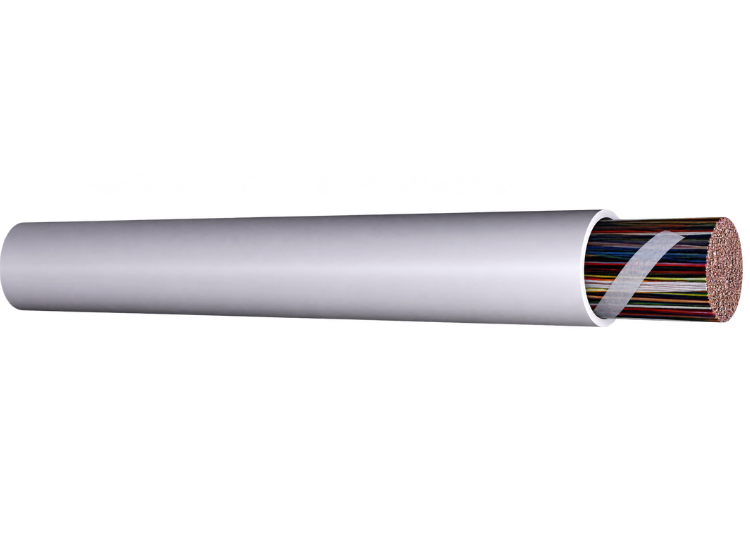

- Telephone Cable with PVC insulation and PVC sheath.
- For use in the Indoor network.
- Tinned-copper conductor
- Insulated conductors uniformly twisted together to form a pair.
- Wrapping is applied over the cable core.
- PVC compound is extruded over the wrapping
Physical Description
Conductors
Solid annealed tinned copper conductor
Insulation
Material shall be colored and shall comply with requirements of
PVC compound type 2 in BS6746Cable Assembly
Twisted pairs ,cabled into sub-units, cabled in a circular form
Rip cord
Non metallic rip cord which may incorporate manufacturers
identification colours shall be laid under the sheathTape wrap
Polyethylene terephthalate tape, wrapped with 25% overlap
Outer Jacket
PVC compound type TMI in BS6746
Mechanical Parameters of basic conductors
Nominal Conductor Diameter (mm)
0.5
Maximum Conductor Diameter (mm)
0.51
Minimum Conductor Elongation, %
15
Insulated Conductor diameter (mm)
0.92
Insulation ultimate tensile force minimum (N)
10
Electrical PropertiesDC resistance @20˚C Ohm/km Maximum Average
97.8
Mutual Capacitance nF/km, max Average
100
Pair to pair capacitance unbalance, pF max
500
Insulation Resistance, 500V DC Minimum Mohm.km
50
Colour codes of unitsPair No
Colour of conductor insulation
A – wire
B – wire
1
White
Blue
2
White
Orange
3
White
Green
4
White
Brown
5
White
Grey
6
Red
Blue
7
Red
Orange
8
Red
Green
9
Red
Brown
10
Red
Grey
- Colour codes of tape lappings, Unit
- Telephone Cable with PVC insulation and PVC sheath.
1 | Blue |
2 | Orange |
3 | Green |
4 | Brown |
5 | Grey |
6 | White |
7 | Red |
8 | Black |
9 | Yellow |
10 | Violet |
Cable Internal 20Pr 0.5mm CS14 - Ivory
