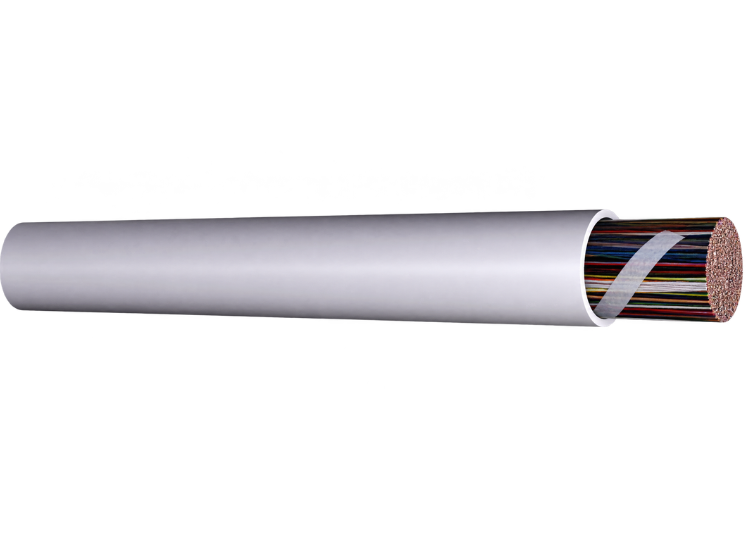

Name: 10 Pair Indoor Telephone Cable 0.5mm Ivory For Telecom Wiring.
Brand: HES KABLO - Turkey
Price: 4.35 AED
Availability: InStock

Description
Reviews (0)

Telephone Cable with PVC insulation and PVC sheath.
For use in the Indoor network.
Tinned-copper conductor
Insulated conductors uniformly twisted together to form a pair.
Wrapping is applied over the cable core.
PVC compound is extruded over the wrapping

Physical Description

Conductors	Solid annealed tinned copper conductor
Insulation	Material shall be colored and shall comply with requirements of PVC compound type 2 in BS6746
Cable Assembly	Twisted pairs ,cabled into sub-units, cabled in a circular form
Rip cord	Non metallic rip cord which may incorporate manufacturers identification colours shall be laid under the sheath
Tape wrap	Polyethylene terephthalate tape, wrapped with 25% overlap
Outer Jacket	PVC compound type TMI in BS6746

Mechanical Parameters of basic conductors

Nominal Conductor Diameter (mm)	0.5
Maximum Conductor Diameter (mm)	0.51
Minimum Conductor Elongation, %	15
Insulated Conductor diameter (mm)	0.92
Insulation ultimate tensile force minimum (N)	10

Electrical Properties

DC resistance @20˚C Ohm/km Maximum Average	97.8
Mutual Capacitance nF/km, max Average	100
Pair to pair capacitance unbalance, pF max	500
Insulation Resistance, 500V DC Minimum Mohm.km	50

Colour codes of units

Pair No	Colour of conductor insulation
	A – wire	B – wire
1	White	Blue
2	White	Orange
3	White	Green
4	White	Brown
5	White	Grey
6	Red	Blue
7	Red	Orange
8	Red	Green
9	Red	Brown
10	Red	Grey

Colour codes of tape lappings, Unit

1	Blue
2	Orange
3	Green
4	Brown
5	Grey
6	White
7	Red
8	Black
9	Yellow
10	Violet

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating

Captcha

Enter the code in the box below

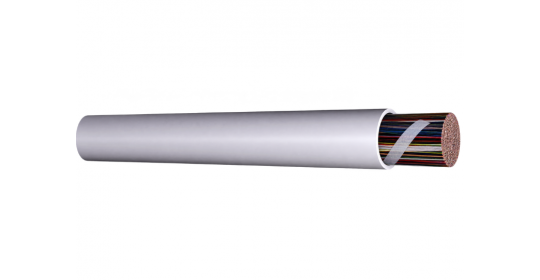

10 Pair Indoor Telephone Cable 0.5mm Ivory For Telecom Wiring.
