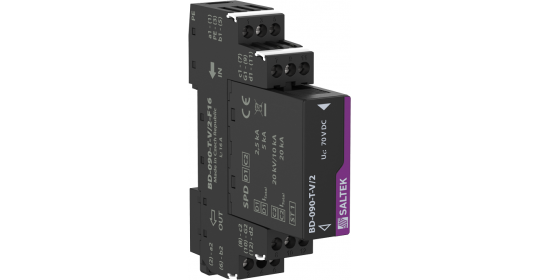

Pluggable module, line separated from protective earth via GDT.
- Lightning current arrester of two 2/3-core signalling lines.
- Installation at the boundary of LPZ 0 and LPZ 1 zones at the line entry into building.
- For protection signalling, data and other lines against surge voltage.
Specifications
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2 |
|
|
Location
of SPD |
ST 1 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
50.00 V AC |
|
Maximum
operating voltage |
Uc |
70.00 V DC |
|
Nominal
load current |
IL |
16.000 A |
|
Treshold
frequency core-core |
f |
120.00 MHz |
|
D1
impulse discharge current (10/350 µs) per core |
Iimp |
2.50 kA |
|
D1
total discharge current (10/350 µs) cores-PE |
ITotal |
5.00 kA |
|
C2
nominal discharge current (8/20 µs) GND-PE |
In |
10.00 kA |
|
C2
nominal discharge current (8/20 µs) per core |
In |
10.00 kA |
|
C2
total discharge current (8/20 µs) cores-PE |
ITotal |
20.00 kA |
|
C3
voltage protection level mode GND-PE at 1 kV/µs |
Up |
550.00 V |
|
C3
voltage protection level mode core-GND at 1 kV/µs |
Up |
550.00 V |
|
C3
voltage protection level mode core-core at 1 kV/µs |
Up |
550 V |
|
Response
time core-core |
ta |
100 ns |
|
Response
time core-GND |
ta |
100 ns |
|
Response
time GND-PE |
ta |
100 ns |
|
Connection
(input - output) |
terminals-terminals |
|
|
Cross-section
of connected conductors solid (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
4.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
2.50 mm2 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 70 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001466 |
|
|
Plug
module |
BD-090-T-V/2-0 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090555544 |
Dimensions
Replacement module: BD-090-T-V/2-0
Lightning current arrester for two 2-core signalling lines,max. 70 V
