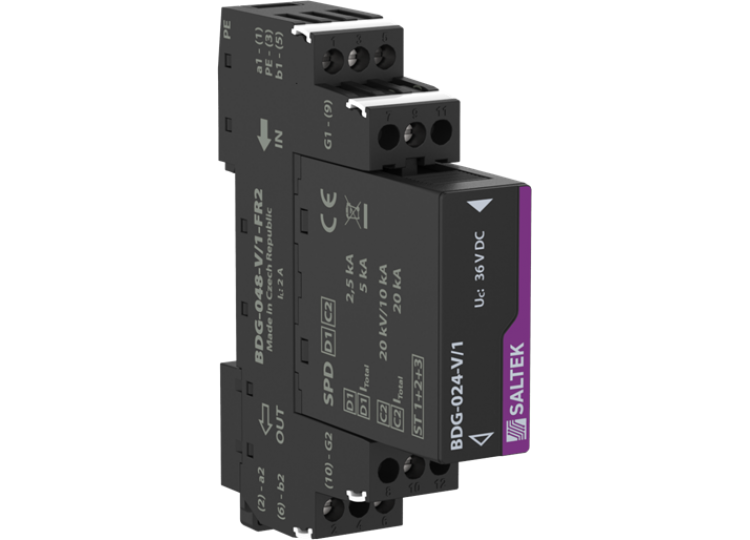

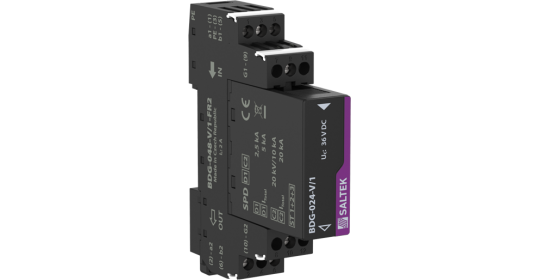

• Lightning current arrester for 2-core  signaling lines, replacement module, 24 V DC, max. 2 A

Pluggable module, coupling impedance (R – resistance), line separated from protective earth via GDT


  • Lightning current arrester with coarse and fine surge protection for 2-core signalling lines
  • Installation at the boundary of LPZ 0 and LPZ 1 zones or higher, at the line entry into building and also installation close to the protected device
  • For the protection of communication interfaces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against the impact of surge voltage
  • Coarse and fine surge protection (core – core) in differential mode and coarse surge protection in common mode (line–PE)


Specifications:



Parameter name

Parameter value

Type of SPD

D1,C2

Location of SPD

ST 1+2+3

Mounting

DIN rail 35 mm

Nominal voltage

Un

24 V DC

Maximum operating voltage

Uc

25.00 V AC

Maximum operating voltage

Uc

36.00 V DC

Nominal load current

IL

2.000 A

Treshold frequency core-core

f

6.00 MHz

Serial resistance per core

R

0.40 Ω

D1 impulse discharge current (10/350 µs) per core

Iimp

2.50 kA

D1 total discharge current (10/350 µs) cores-PE

ITotal

5.00 kA

C2 nominal discharge current (8/20 µs) GND-PE

In

10.00 kA

C2 nominal discharge current (8/20 µs) per core

In

10.00 kA

C2 total discharge current (8/20 µs) cores-PE

ITotal

20.00 kA

C3 nominal discharge current (10/1000 µs) core-PE

ISM

10 A

C3 nominal discharge current (10/1000 µs) core-core

ISM

10 A

C3 voltage protection level mode GND-PE at 1 kV/µs

Up

550.00 V

C3 voltage protection level mode core-GND at 1 kV/µs

Up

550.00 V

C3 voltage protection level mode core-core at 1 kV/µs

Up

46 V

Response time core-core

ta

1 ns

Response time core-GND

ta

100 ns

Response time GND-PE

ta

100 ns

Connection (input - output)

terminals-terminals

Cross-section of connected conductors solid (min)

0.14 mm2

Cross-section of connected conductors solid (max)

4.00 mm2

Cross-section of connected conductors stranded (min)

0.14 mm2

Cross-section of connected conductors stranded (max)

2.50 mm2

Degree of protection

IP 20

Range of ambient temperatures (min/max)

-40 / 70 °C

According to standard

EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012

ETIM Class

EC001625

Plug module

BDG-024-V/1-0

Customs tariff number

85363010

EAN

8595090564850



Product Dimensions:





Replacement module: BDG-024-V/1-0
