Pluggable module, coupling impedance (R – resistance),
line separated from protective earth via GDT.

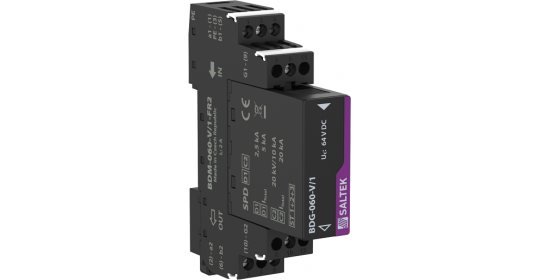

- Lightning current arrester with coarse and
fine surge protection for 2/3-core signalling lines.
- Installation at the boundary of LPZ 0 and LPZ
1 zones or higher, at the line entry into building and also installation close
to protected device.
- For protection of telecommunication lines (version BDGHF-230) and interfaces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485, PROFIBUS interfaces) against surge voltage.
- Coarse and fine surge protection (core – core, GND) in differential mode and coarse surge protection in common mode (line – PE).
Specifications:
Parameter name | Parameter value | |
Type
of SPD | D1,C2 | |
Location
of SPD | ST 1+2+3 | |
Mounting | DIN rail 35 mm | |
Nominal
voltage | Un | 60 V DC |
Maximum
operating voltage | Uc | 45.00 V AC |
Maximum
operating voltage | Uc | 64.00 V DC |
Nominal
load current | IL | 2.000 A |
Treshold
frequency core-core | f | 6.50 MHz |
Serial
resistance per core | R | 0.40 Ω |
D1
impulse discharge current (10/350 µs) per core | Iimp | 2.50 kA |
D1
total discharge current (10/350 µs) cores-PE | ITotal | 5.00 kA |
C2
nominal discharge current (8/20 µs) GND-PE | In | 10.00 kA |
C2
nominal discharge current (8/20 µs) per core | In | 10.00 kA |
C2
total discharge current (8/20 µs) cores-PE | ITotal | 20.00 kA |
C3
nominal discharge current (10/1000 µs) core-PE | ISM | 10 A |
C3
nominal discharge current (10/1000 µs) core-core | ISM | 10 A |
C3
voltage protection level mode GND-PE at 1 kV/µs | Up | 550.00 V |
C3
voltage protection level mode core-GND at 1 kV/µs | Up | 85.00 V |
C3
voltage protection level mode core-core at 1 kV/µs | Up | 85 V |
Response
time core-core | ta | 1 ns |
Response
time core-GND | ta | 1 ns |
Response
time GND-PE | ta | 100 ns |
Connection
(input - output) | terminals-terminals | |
Cross-section
of connected conductors solid (min) | 0.14 mm2 | |
Cross-section
of connected conductors solid (max) | 4.00 mm2 | |
Cross-section
of connected conductors stranded (min) | 0.14 mm2 | |
Cross-section
of connected conductors stranded (max) | 2.50 mm2 | |
Degree
of protection | IP 20 | |
Range
of ambient temperatures (min/max) | -40 / 70 °C | |
According
to standard | EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 | |
ETIM
Class | EC001625 | |
Plug
module | BDM-060-V/1-0 | |
Customs
tariff number | 85363010 | |
EAN | 8595090564393 |
Dimensions:
Replacement module: BDM-060-V/1-0
Lightning current arrester replacement module for 2/3-core ling lines, 60 V DC, max. 2 A
