Pluggable module, coupling impedance (R – resistance),
line separated from protective earth via GDT.
- Coarse and fine surge protection of shielded 2-core
telecommunication, data and other lines.
- Installation at the boundary of LPZ 0 and LPZ 1 zones at
the line entry into building.
- For protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly the measuring circuits) against impact of surge voltage.
- Coarse and fine surge protection (core – core) and coarse protection (core – GND) in differential mode, coarse surge protection in common mode (line – PE).
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2 |
|
|
Location
of SPD |
ST 1+2+3 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Nominal
voltage |
Un |
12 V DC |
|
Maximum
operating voltage |
Uc |
11.00 V AC |
|
Maximum
operating voltage |
Uc |
16.00 V DC |
|
Nominal
load current |
IL |
1.000 A |
|
Treshold
frequency core-core |
f |
3.00 MHz |
|
Serial
resistance per core |
R |
0.80 Ω |
|
D1
impulse discharge current (10/350 µs) per core |
Iimp |
2.50 kA |
|
D1
total discharge current (10/350 µs) cores-PE |
ITotal |
5.00 kA |
|
C2
nominal discharge current (8/20 µs) GND-PE |
In |
10.00 kA |
|
C2
nominal discharge current (8/20 µs) per core |
In |
10.00 kA |
|
C2
total discharge current (8/20 µs) cores-PE |
ITotal |
20.00 kA |
|
C3
nominal discharge current (10/1000 µs) core-PE |
ISM |
10 A |
|
C3
nominal discharge current (10/1000 µs) core-core |
ISM |
10 A |
|
C3
voltage protection level mode GND-PE at 1 kV/µs |
Up |
550.00 V |
|
C3
voltage protection level mode core-GND at 1 kV/µs |
Up |
550.00 V |
|
C3
voltage protection level mode core-core at 1 kV/µs |
Up |
22 V |
|
Response
time core-core |
ta |
1 ns |
|
Response
time core-GND |
ta |
100 ns |
|
Response
time GND-PE |
ta |
100 ns |
|
Connection
(input - output) |
terminals-terminals |
|
|
Cross-section
of connected conductors solid (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
4.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
2.50 mm2 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 70 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001466 |
|
|
Plug
module |
BDG-012-V/1-0 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090557050 |
|
|
|
Dimensions:
Replacement module: BDG-012-V/1-0

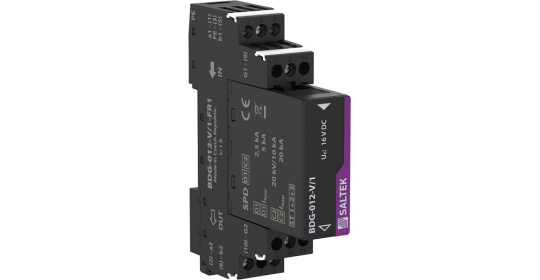

Lightning current arrester for shielded 2-core signalling lines, 12 V DC, max. 1 A
