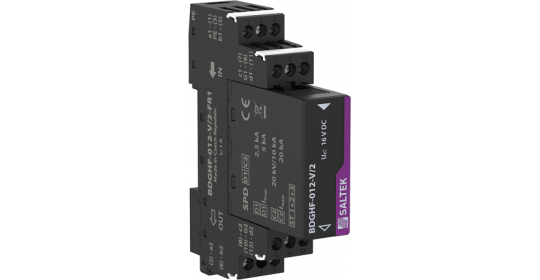

Pluggable module, coupling impedance (R – resistance),
line separated from protective earth via GDT.
- Lightning current arrester with coarse and
fine surge protection for two 2-core high-speed signalling lines.
- Installation at the boundary of LPZ 0 and LPZ
1 zones or higher, at the line entry into building and also installation close
to protected device.
- For protection of telecommunication lines
(version BDGHF-230) and interfaces of I&C, MaR systems, electronic security
and fire detection systems, etc. (mainly for RS-485, PROFIBUS interfaces)
against surge voltage.
- Coarse and fine surge protection (core – core) in differential mode and coarse surge protection in common mode (line – PE).
Specifications:
Parameter
name |
Parameter
value |
|
|
Type of SPD |
D1,C2 |
|
|
Location of SPD |
ST
1+2+3 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
12
V DC |
|
Maximum operating voltage |
Uc |
11.00
V AC |
|
Maximum operating voltage |
Uc |
16.00
V DC |
|
Nominal load current |
IL |
1.000
A |
|
Treshold frequency core-core |
f |
70.00
MHz |
|
Serial resistance per core |
R |
0.80
Ω |
|
C2 nominal discharge current (8/20 µs)
GND-PE |
In |
10.00
kA |
|
C2 nominal discharge current (8/20 µs) per
core |
In |
10.00
kA |
|
C2 total discharge current (8/20 µs)
cores-PE |
ITotal |
20.00
kA |
|
C3 nominal discharge current (10/1000 µs)
core-PE |
ISM |
10
A |
|
C3 nominal discharge current (10/1000 µs)
core-core |
ISM |
10
A |
|
C3 voltage protection level mode GND-PE at
1 kV/µs |
Up |
550.00
V |
|
C3 voltage protection level mode core-GND
at 1 kV/µs |
Up |
550.00
V |
|
C3 voltage protection level mode core-core
at 1 kV/µs |
Up |
24
V |
|
Response time core-core |
ta |
1
ns |
|
Response time core-GND |
ta |
100
ns |
|
Response time GND-PE |
ta |
100
ns |
|
Connection (input - output) |
terminals-terminals |
|
|
Cross-section of connected conductors solid
(min) |
0.14
mm2 |
|
|
Cross-section of connected conductors solid
(max) |
4.00
mm2 |
|
|
Cross-section of connected conductors
stranded (min) |
0.14
mm2 |
|
|
Cross-section of connected conductors
stranded (max) |
2.50
mm2 |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures (min/max) |
-40
/ 70 °C |
|
|
According to standard |
EN
61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 |
|
|
ETIM Class |
EC001625 |
|
|
Plug module |
BDGHF-012-V/2-0 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090565291 |
Dimensions:
Replacement module: BDGHF-012-V/2-0
Lightning current arrester , replacement module, of two 2-core floating signalling line, 12 V DC, max. 1
