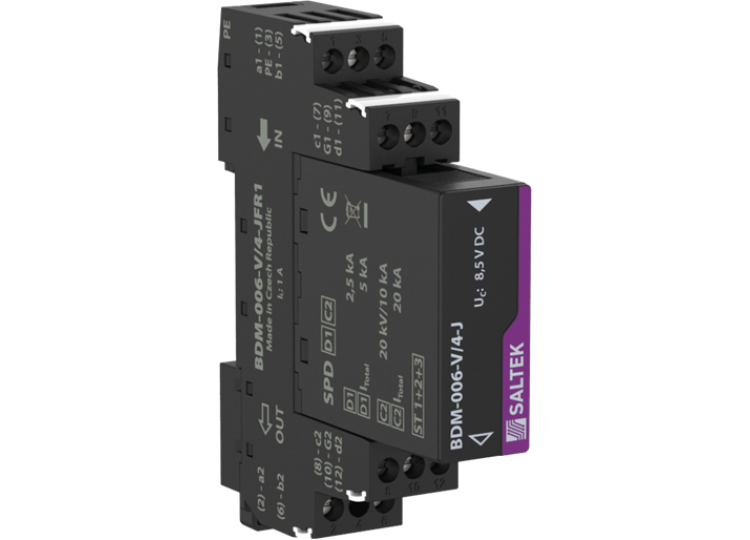

Pluggable module, coupling impedance (R – resistance), line separated from protective earth via GDT.
- Lightning current arrester with coarse and fine surge protection for four 1-core signalling lines.
- Installation at the boundary of LPZ 0 and LPZ 1 zones or higher, at the line entry into building and also installation close to protected device.
- For protection of communication inter- faces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage.
- Coarse and fine surge protection (core – GND) in differential mode and coarse surge protection in common mode (line – PE).
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
D1,C2 |
|
|
Location of SPD |
ST
1+2+3 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
6
V DC |
|
Maximum operating voltage |
Uc |
6.00
V AC |
|
Maximum operating voltage |
Uc |
8.50
V DC |
|
Nominal load current |
IL |
1.000
A |
|
Treshold frequency core-core |
f |
0.80
MHz |
|
Serial resistance per core |
R |
0.80
Ω |
|
D1 impulse discharge current (10/350
µs) per core |
Iimp |
2.50
kA |
|
D1 total discharge current (10/350
µs) cores-PE |
ITotal |
5.00
kA |
|
C2 nominal discharge current (8/20
µs) GND-PE |
In |
10.00
kA |
|
C2 nominal discharge current (8/20
µs) per core |
In |
10.00
kA |
|
C2 total discharge current (8/20 µs)
cores-PE |
ITotal |
20.00
kA |
|
C3 nominal discharge current
(10/1000 µs) core-PE |
ISM |
10
A |
|
C3 nominal discharge current
(10/1000 µs) core-core |
ISM |
10
A |
|
C3 voltage protection level mode
GND-PE at 1 kV/µs |
Up |
550.00
V |
|
C3 voltage protection level mode
core-GND at 1 kV/µs |
Up |
12.00
V |
|
Response time core-GND |
ta |
1
ns |
|
Response time GND-PE |
ta |
100
ns |
|
Connection (input - output) |
terminals-terminals |
|
|
Cross-section of connected
conductors solid (min) |
0.14
mm2 |
|
|
Cross-section of connected
conductors solid (max) |
4.00
mm2 |
|
|
Cross-section of connected
conductors stranded (min) |
0.14
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
2.50
mm2 |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 70 °C |
|
|
According to standard |
EN
61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 |
|
|
ETIM Class |
EC001625 |
|
|
Plug module |
BDM-006-V/4-J-0 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090563969 |
Dimensions:
Replacement module: BDM-006-V/4-J-0
Lightning current arrester replacement module, for four 1-core signalling lines, 6 V DC, max. 1 A
