SPD - for data, signalling and telecommunications lines / I&C / Spare modules

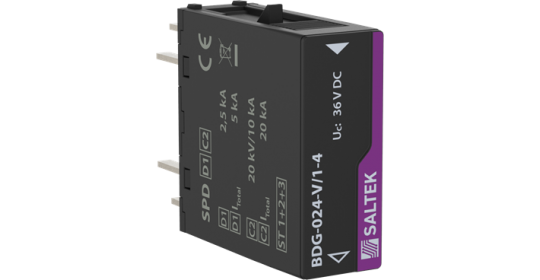

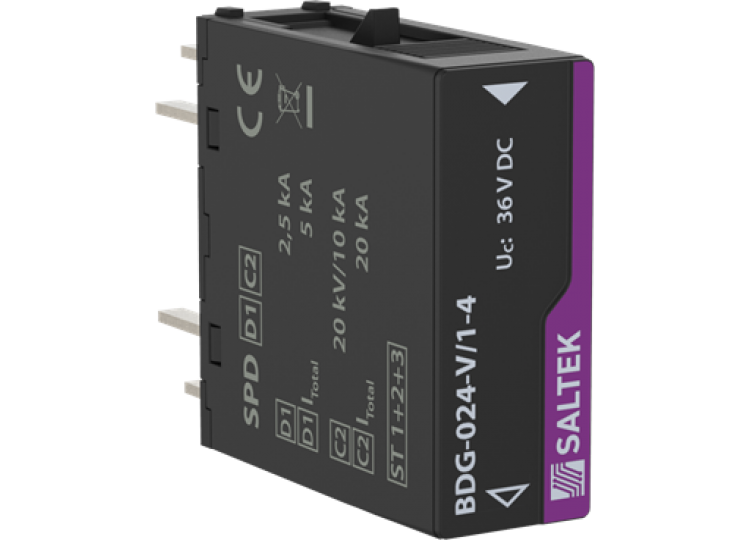

Replacement module for BDG-024-V/1-4(F)Rx
Pluggable module, coupling impedance (R – resistance)
- Lightning current arrester with coarse and fine surge protection for two 2-core signalling lines
- Installation at the boundary of LPZ 0 and LPZ 1 zones or higher, at the line entry into building and also installation close to protected device
- For protection of communication interfaces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485 inter- faces) against impact of surge voltage
- Coarse and fine surge protection (core – core) in differential mode and coarse surge protection in common mode (line – PE)
Specifications:
|
Parameter name |
Parameter value |
|
|
ETIM
Class |
EC001625 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090564829 |
Replacement module for BDG-024-V/1-4(F)Rx
