Coupling impedance (inductance), screw terminals.
- Coarse and fine surge protection for
low-frequency 2-core signalling networks.
- Installation close to protected equipment.
- For protection of analogue measuring lines in
the areas with RF disturbance.
- Coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
C2 |
|
|
Location
of SPD |
ST 2 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Nominal
voltage |
Un |
24 V DC |
|
Maximum
operating voltage |
Uc |
31.00 V DC |
|
Nominal
load current |
IL |
0.100 A |
|
Treshold
frequency core-core |
f |
0.07 MHz |
|
D1
impulse discharge current (10/350 µs) per core |
Iimp |
0.50 kA |
|
D1
total discharge current (10/350 µs) cores-PE |
ITotal |
1.00 kA |
|
C2
nominal discharge current (8/20 µs) per core |
In |
5.00 kA |
|
C2
total discharge current (8/20 µs) cores-PE |
ITotal |
10.00 kA |
|
C2
voltage protection level mode core-PE at In |
Up |
80 V |
|
C2
voltage protection level mode core-core at In |
Up |
65 V |
|
C3
voltage protection level mode core-PE at 1 kV/µs |
Up |
55 V |
|
C3
voltage protection level mode core-core at 1 kV/µs |
Up |
55 V |
|
Response
time core-core |
ta |
25 ns |
|
Response
time core-PE |
ta |
25 ns |
|
Connection
(input - output) |
terminals-terminals |
|
|
Cross-section
of connected conductors solid (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
4.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
0.14 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
2.50 mm2 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 70 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001625 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090553335 |
Dimensions:

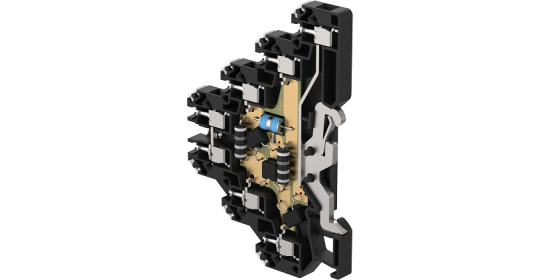

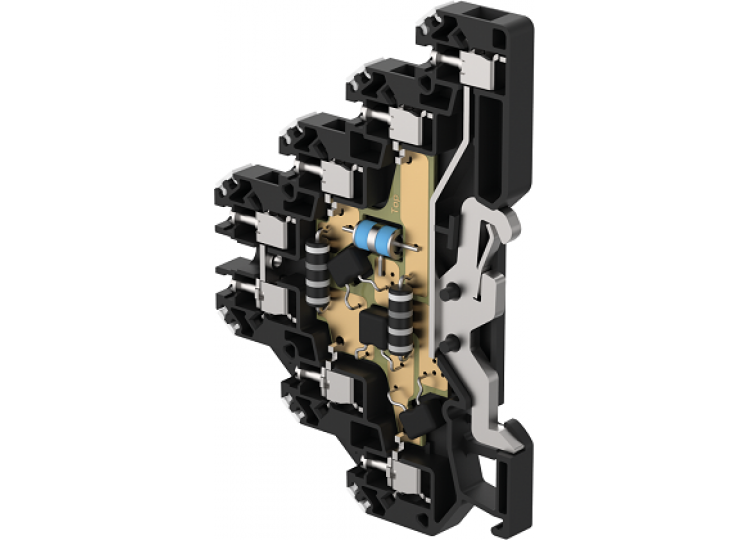

Surge protection for low-frequency 2-core signalling networks, 24 V DC, max. 0.1 A
