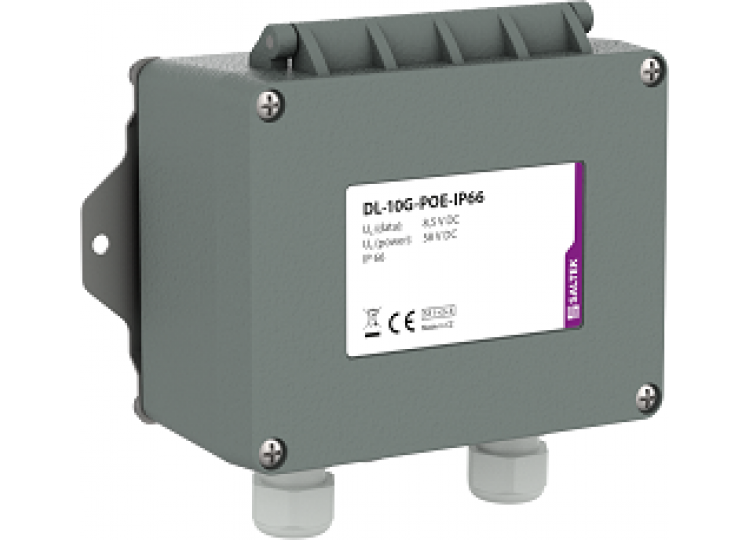

Surge protection
for outdoor Ethernet devices with PoE.
- Two-stage
Ethernet surge protection in combination with special PoE protection.
- Installation
anywhere in the LPZ 0 zone.
- Complies
with all types of PoE/PoE+/PoE++ (according to IEEE 802.3 af/at/bt).
- To
protect Ethernet terminals with PoE (cameras, sensors, information panels,
etc.).
- For sale from 1.7.2022.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
D1,C2,C3 |
|
|
Location of SPD |
ST
1+2+3 |
|
|
Maximum operating voltage core-core |
Uc |
8,50
V DC |
|
Maximum operating voltage pair-pair
(POE) |
Uc |
58,00
V DC |
|
Nominal load current per core at 25
°C |
IL |
0.5
A |
|
Treshold frequency core-core |
f |
500.00
MHz |
|
Insertion attenuation at treshhold
frequency |
3.20
dB |
|
|
C2 nominal discharge current (8/20 µs)
core-core |
In |
0.15
kA |
|
D1 total discharge current (10/350
µs) cores-PE |
ITotal |
2.00
kA |
|
C2 total discharge current (8/20 µs)
cores-PE |
ITotal |
10.00
kA |
|
C2 voltage protection level mode
core-core (@Uoc/In) |
Up |
60,00
V (0,3 kV / 0,15 kA) |
|
C2 voltage protection level mode
core-PE (@Uoc/In) |
Up |
700,00
V (2,5 kV / 1,25 kA) |
|
C2 voltage protection level mode
pair-pair (POE) (@Uoc/In) |
Up |
90,00
V (0,3 kV / 0,15 kA) |
|
C3 voltage protection level mode
core-core (@In - 1 kV/µs) |
Up |
45,00
V (10 A) |
|
C3 voltage protection level mode
core-PE (@In - 1 kV/µs) |
Up |
500,00
V (10 A) |
|
C3 voltage protection level mode
pair-pair (POE) (@In - 1 kV/µs) |
Up |
85,00
V (10 A) |
|
Response time core-core |
ta |
1
ns |
|
Response time core-PE |
ta |
100
ns |
|
Connection (input - output) |
RJ
45/RJ 45 |
|
|
Degree of protection |
IP
66 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 70 °C |
|
|
Humidity |
5
- 95 % |
|
|
According to standard |
EN
61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 |
|
|
ETIM Class |
EC000943 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090570981 |
Dimensions:
Two-stage surge protection for outdoor Ethernet devices with PoE
