LPZ 0 and higher, for high-speed Ethernet networks with PoE.
- Combination of coarse and fine protection of Ethernet line with PoE.
- Installation at the entry of the line into building or close to the protected equipment, at the boundary of LPZ 0 and LPZ 1 or higher.
- For protection of Ethernet line with PoE (Power over Ethernet) against surge voltage.
- Suitable for all PoE types - PoE/PoE+/PoE++ (IEEE 802.3 af/at/bt).
- Installation into DL-PL-RACK-1U box.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2,C3 |
|
|
Location
of SPD |
ST 1+2+3 |
|
|
Mounting |
DL-PL-RACK-1U |
|
|
Maximum
operating voltage core-core |
Uc |
8,50 V DC |
|
Maximum
operating voltage pair-pair (POE) |
Uc |
58,00 V DC |
|
Nominal
load current per core at 25 °C |
IL |
0.5 A |
|
Treshold
frequency core-core |
f |
250.00 MHz |
|
Insertion
attenuation at treshhold frequency |
2.80 dB |
|
|
C2
nominal discharge current (8/20 µs) core-core |
In |
0.15 kA |
|
C2
nominal discharge current (8/20 µs) core-PE |
In |
1.25 kA |
|
C2
nominal discharge current (8/20 µs) pair-pair (POE) |
In |
0.15 kA |
|
D1
total discharge current (10/350 µs) cores-PE |
ITotal |
2.00 kA |
|
C2
total discharge current (8/20 µs) cores-PE |
ITotal |
10.00 kA |
|
C2
voltage protection level mode core-core (@Uoc/In) |
Up |
60,00 V (0,3 kV / 0,15 kA) |
|
C2
voltage protection level mode core-PE (@Uoc/In) |
Up |
700,00 V (2,5 kV / 1,25 kA) |
|
C2
voltage protection level mode pair-pair (POE) (@Uoc/In) |
Up |
90,00 V (0,3 kV / 0,15 kA) |
|
C3
voltage protection level mode core-core (@In - 1 kV/µs) |
Up |
45,00 V (10 A) |
|
C3
voltage protection level mode core-PE (@In - 1 kV/µs) |
Up |
500,00 V (10 A) |
|
C3
voltage protection level mode pair-pair (POE) (@In - 1 kV/µs) |
Up |
85,00 V (10 A) |
|
Response
time core-core |
ta |
1 ns |
|
Response
time core-PE |
ta |
100 ns |
|
Connection
(input - output) |
RJ 45/RJ 45 |
|
|
Degree
of protection |
IP 30 (without connectors IP
10) |
|
|
Range
of ambient temperatures (min/max) |
-10 / 50 °C |
|
|
Humidity |
15 - 85 % |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090541653 |
Dimensions:

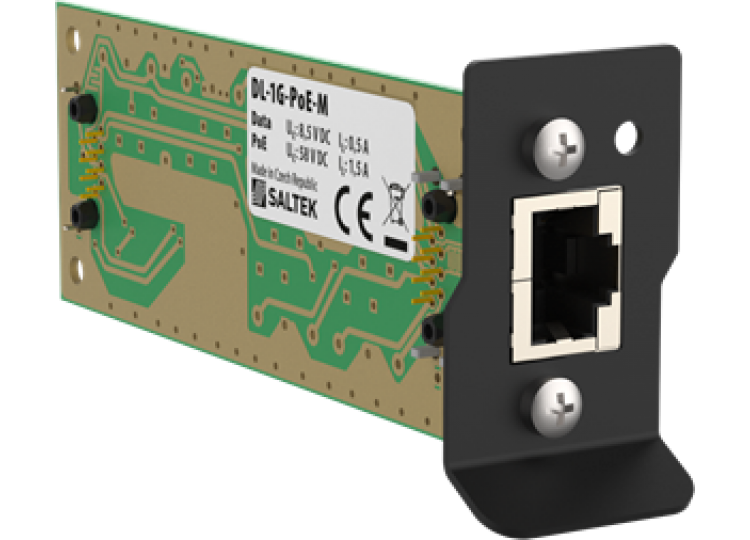

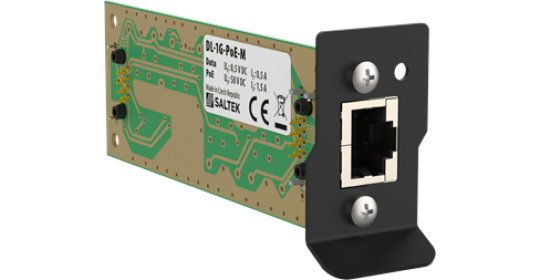

SALTEK DL-1G-POE-M SPD – Data, Signalling and Telecommunication | DAFNIA
