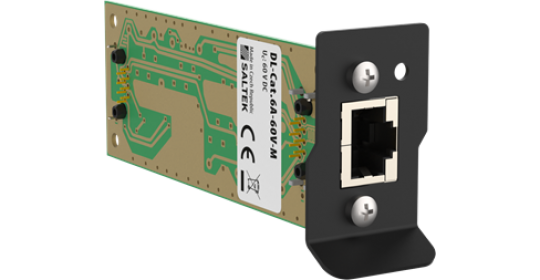

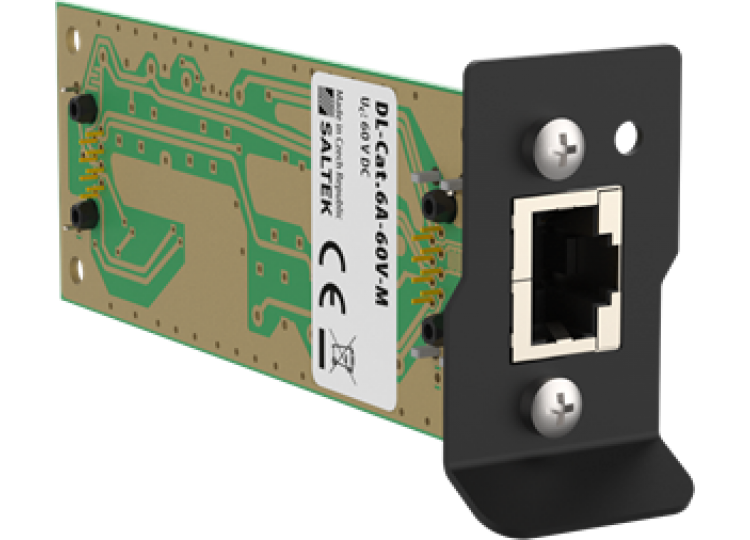

Fine protector module for Ethernet networks with PoE and general structured cabling.
- Fine surge protection of Ethernet line with PoE and structured cabling networks with signals with amplitudes up to 60 V.
- Installation at the entry of the line into building or close to the protected equipment, at the boundary of LPZ 0 and LPZ 1 or higher.
- For protection of Ethernet line with PoE, IP telephony, KNX, DMX, RS-485, signalling loops and other signals over twisted pairs against surge voltage.
- Suitable for all PoE types - PoE/PoE+/PoE++ (IEEE 802.3 af/at/bt).
- Installation into DL-PL-RACK-1U box.
- DL-...-M with front output.
- Dl-...-m-R with rear output.
Specifications:
|
Parameter
name |
Parameter value |
|
|
Type of SPD |
C2,C3 |
|
|
Location of SPD |
ST 2+3 |
|
|
Mounting |
DL-PL-RACK-1U |
|
|
Maximum operating
voltage core-core |
Uc |
60 V DC |
|
Maximum operating
voltage pair-pair (POE) |
Uc |
60 V DC |
|
Nominal load current
per core at 25 °C |
IL |
0.5 A |
|
Treshold frequency
core-core |
f |
250.00 MHz |
|
Insertion attenuation
at treshhold frequency |
2.90 dB |
|
|
C2 nominal discharge
current (8/20 µs) core-core |
In |
0.20 kA |
|
C2 nominal discharge
current (8/20 µs) per core |
In |
0.20 kA |
|
C2 total discharge
current (8/20 µs) cores-PE |
ITotal |
1.60 kA |
|
C2 voltage protection
level mode core-core (@Uoc/In) |
Up |
130,00 V (0,4 kV / 0,2 kA) |
|
C2 voltage protection
level mode core-PE (@Uoc/In) |
Up |
400,00 V (0,4 kV / 0,2 kA) |
|
C2 voltage protection
level mode pair-pair (POE) (@Uoc/In) |
Up |
130,00 V (0,4 kV / 0,2 kA) |
|
C3 voltage protection
level mode core-core (@In - 1 kV/µs) |
Up |
130,00 V (10 A) |
|
C3 voltage protection
level mode core-PE (@In - 1 kV/µs) |
Up |
600,00 V (10 A) |
|
C3 voltage protection
level mode pair-pair (POE) (@In - 1 kV/µs) |
Up |
130,00 V (10 A) |
|
Response time
core-core |
ta |
1 ns |
|
Response time core-PE |
ta |
100 ns |
|
Connection (input -
output) |
RJ 45/RJ 45 |
|
|
Degree of protection |
IP 30 (without connectors IP 10) |
|
|
Range of ambient
temperatures (min/max) |
-10 / 50 °C |
|
|
Humidity |
15 - 85 % |
|
|
According to standard |
EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090542100 |
Dimensions:
Fine surge protector module ,60 V
