BNC connectors, 75 ohm.
- Lightning current arrested with floating
shielding (separated with GDT).
- Installation at the boundary of LPZ 0 and LPZ
1 zones at the line entry into building.
- For protection of coaxial lines of TV and
CCTV systems, suitable as the 1st level of surge for protection in coordination
with the SX type.
- In the scope of delivery: universal plastic adapter for mounting on DIN GND rail and 2 holder.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2 |
|
|
Location
of SPD |
ST 1 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
70.00 V DC |
|
Nominal
load current |
IL |
4.000 A |
|
Frequency
range |
f |
0,00 - 2150,00 MHz |
|
Impedance |
Z |
75 Ω |
|
Insertion
loss |
0.60 dB |
|
|
VSWR typ.
(max.) |
VSWR |
1,2 |
|
D1
impulse discharge current (10/350 µs) SH-PE |
Iimp |
2.50 kA |
|
D1
impulse discharge current (10/350 µs) core-SH |
Iimp |
2.50 kA |
|
C2
nominal discharge current (8/20 µs) SH-PE |
In |
10.00 kA |
|
C2
nominal discharge current (8/20 µs) core-SH |
In |
10.00 kA |
|
C3
voltage protection level mode SH-PE at 1 kV/µs |
Up |
600 V |
|
C3
voltage protection level mode core-SH at 1 kV/µs |
Up |
600 V |
|
Response
time core-SH |
ta |
100 ns |
|
Response
time SH-PE |
ta |
100 ns |
|
Connection
(input - output) |
BNC 75 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001466 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090533856 |
Dimensions:

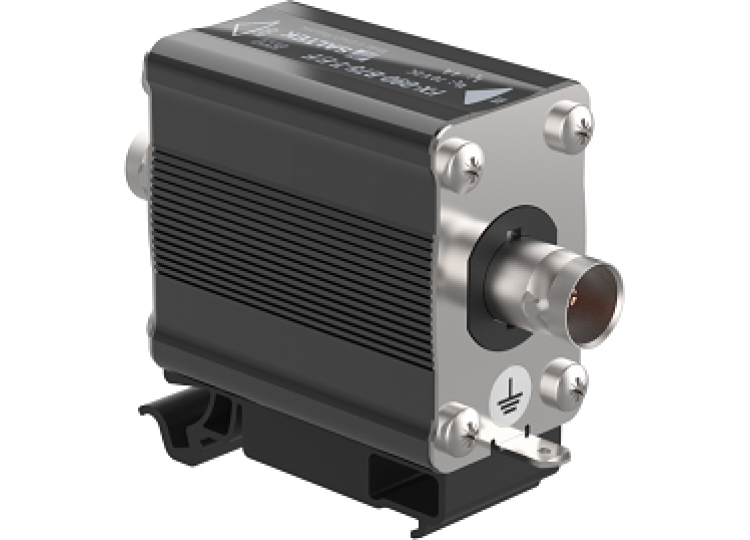

Lightning current arrester for coaxial lines,70 V
