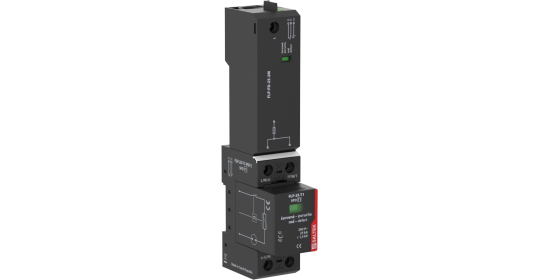

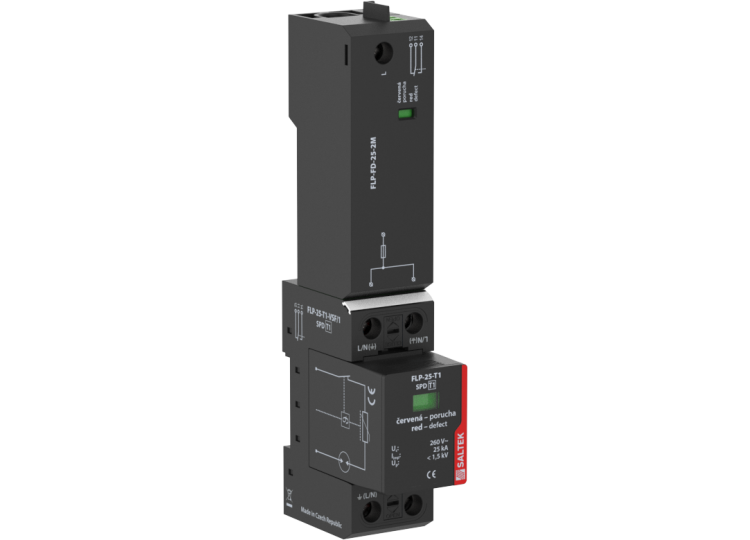

Pluggable module, visual fault signalling, module locking, remote fault signalling.
- One-pole high performance lightning current arrester without follow current.
- Installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards.
- For protection against impact of direct or indirect lightning strikes in wide range of applications – office and industrial buildings.
- Coordination with SPD Type 2 (SLP-275 V) even without surge separating inductors.
- Zero leakage current.
- With integrated backup fuse.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T1 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
230
V AC |
|
Maximum operating voltage |
Uc |
260.00
V AC |
|
Type of network |
TN |
|
|
Maximum overcurrent protection |
- |
|
|
Short-circuit current rating |
ISCCR |
50.0
kA |
|
Residual current |
IPE |
0.004
mA |
|
Lightning impulse current (10/350
µs) |
Iimp |
25.00
kA |
|
Voltage protection level |
Up |
1.50
kV |
|
Response time |
ta |
100
ns |
|
TOV characteristic (TOV 5 s) |
withstand |
|
|
Cross-section of connected
conductors solid (min) |
2.50
mm2 |
|
|
Cross-section of connected
conductors solid (max) |
50.00
mm2 |
|
|
Cross-section of connected
conductors stranded (min) |
2.50
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
35.00
mm2 |
|
|
Cross-section of remote indication
conductors solid (max) |
1.5
mm2 |
|
|
Cross-section of remote indication
conductors stranded (max) |
1.5
mm2 |
|
|
Fault indication |
red
indication field |
|
|
Remote indication |
potential-free
change-over contact |
|
|
Remote indication contacts |
250V/0,5A
AC,250V/0,1A DC |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 80 °C |
|
|
Humidity |
5
- 95 % |
|
|
According to standard |
EN
61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM Class |
EC000381 |
|
|
Plug module |
FLP-25-T1-V/0 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090571124 |
Dimensions:
Combined lightning current arrester, 25 kA
