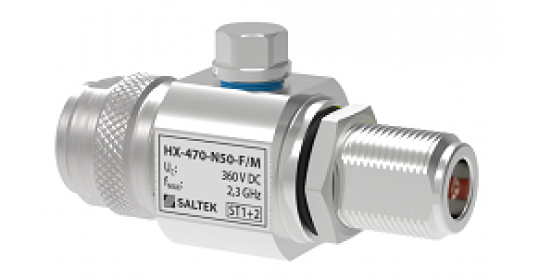

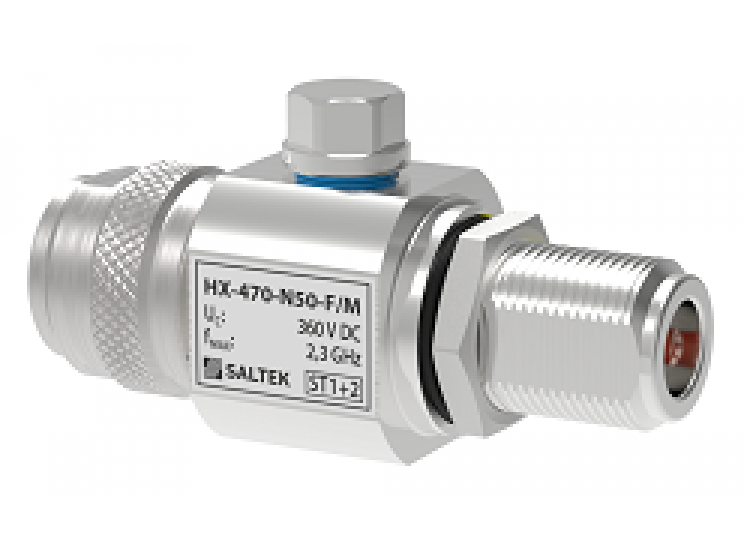

Connectors N 50 Ohm.
- Lightning current arrester for coaxial line.
- Iinstallation at the boundary of LPZ 0 and
LPZ 1 zones at the line entry into building.
- For protection of telecommunication equipment
against impact of direct or indirect lightning strike.
- Suitable for the combined signal and power supply distribution.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2 |
|
|
Location
of SPD |
ST 1+2 |
|
|
Maximum
operating voltage |
Uc |
360.00 V DC |
|
Nominal
load current |
IL |
6.000 A |
|
Frequency
range |
f |
0,00 - 3000,00 MHz |
|
Impedance |
Z |
50 Ω |
|
Power
(CW) |
P |
1 175.00 W |
|
Insertion
loss typ. (max.) |
A |
0,2 (0,4) dB |
|
VSWR typ.
(max.) |
VSWR |
1,1 (1,2) |
|
D1
impulse discharge current (10/350 µs) core-PE |
Iimp |
2.50 kA |
|
C2
nominal discharge current (8/20 µs) core-PE |
In |
10.00 kA |
|
Dynamic
spark-over voltage at 1kV/µs |
Udyn |
980.00 V |
|
Response
time core-PE |
ta |
100 ns |
|
Connection
(input - output) |
N 50 |
|
|
Degree
of protection |
IP 66 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001466 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090565567 |
Dimensions:
Lightning current arrester for coaxial lines (antennas), 360 V DC
