F connectors 75 ohm.
- Surge arrester, shielding connected to
protective grounding.
- Installation close to protected equipment.
- For protection of sensitive coaxial inputs of commercial receivers (TV/SAT).
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
D1,C2,C3 |
|
|
Location
of SPD |
ST 1+2+3 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
26.00 V DC |
|
Nominal
load current |
IL |
0.700 A |
|
Frequency
range |
f |
0,00 - 2300,00 MHz |
|
Impedance |
Z |
75 Ω |
|
Insertion
loss |
1.50 dB |
|
|
VSWR typ.
(max.) |
VSWR |
1,7 |
|
D1
impulse discharge current (10/350 µs) core-PE |
Iimp |
0.50 kA |
|
C2
nominal discharge current (8/20 µs) core-PE |
In |
2.50 kA |
|
Dynamic
spark-over voltage at 1kV/µs |
Udyn |
85.00 V |
|
Response
time core-PE |
ta |
1 ns |
|
Connection
(input - output) |
F 75 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001625 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090541585 |
Dimensions:

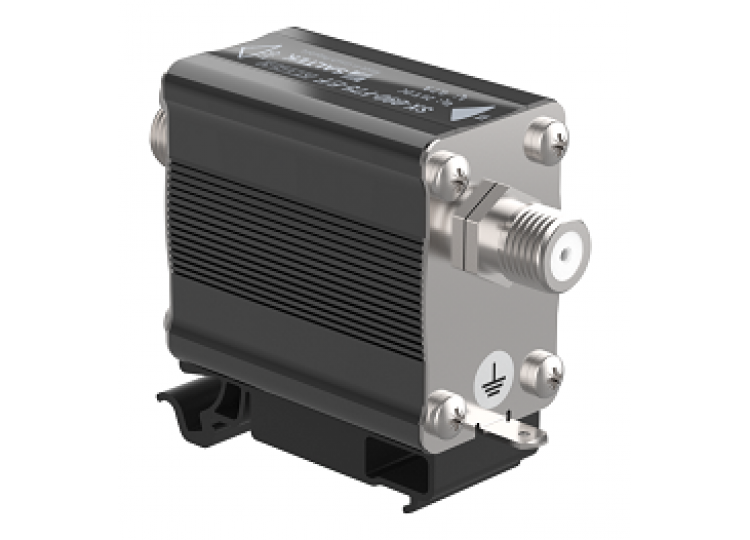

Surge arrester for protection of sensitive coaxial inputs ,75 Ohm
