Pluggable
module, visual fault signalling, module locking.

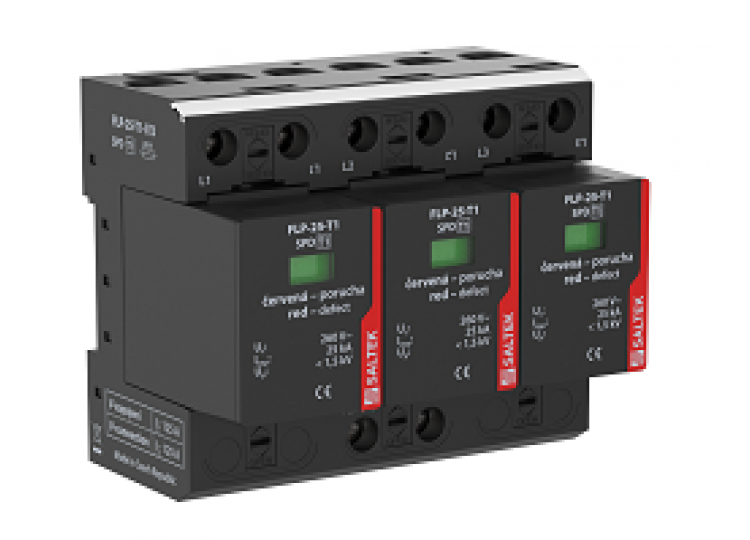

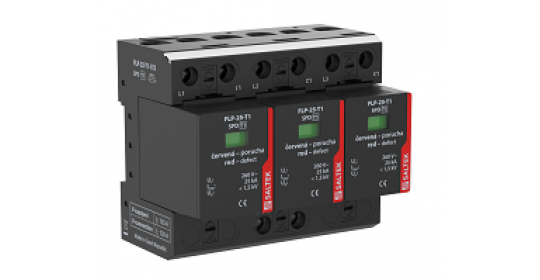

- Three-pole
high performance lightning current arrester, leakage current-free.
- Installation
at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution
boards.
- For
protection against impact of direct or indirect lightning strikes in wide range
of applications – houses, office and industrial buildings.
- Coordination with SPD type 2 (SLP-275 V) even without surge separating inductors.
Specifications:
rameter name |
Parameter value |
|
|
Type
of SPD |
T1 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Nominal
voltage |
Un |
230 V AC |
|
Maximum
operating voltage |
Uc |
260.00 V AC |
|
Nominal
load current for "V" connection |
IL |
125 A |
|
Type
of network |
TN |
|
|
Maximum
overcurrent protection |
250 A gL/gG |
|
|
Maximum
overcurrent protection for "V" connection |
125 A gL/gG |
|
|
Short-circuit
current rating |
ISCCR |
50.0 kA |
|
Total
discharge current (10/350 µs) |
ITotal(10/350) |
75.00 kA |
|
Lightning
impulse current (10/350 µs) |
Iimp |
25.00 kA |
|
Voltage
protection level |
Up |
1.50 kV |
|
Response
time |
ta |
100 ns |
|
TOV
5 s L-N |
335 V |
|
|
TOV
characteristic (TOV 5 s) |
withstand |
|
|
Cross-section
of connected conductors solid (min) |
2.50 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
50.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
2.50 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
35.00 mm2 |
|
|
Fault
indication |
red indication field |
|
|
Remote
indication |
no |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM
Class |
EC000381 |
|
|
Plug
module |
FLP-25-T1-V/0 |
|
|
Customs
tariff number |
85363090 |
|
|
EAN |
8595090553007 |
Dimensions:
Replacement module: FLP-25-T1-V/0
Lightning current arrester for 3-phase TN-C system, 75 kA (10/350 µs)
