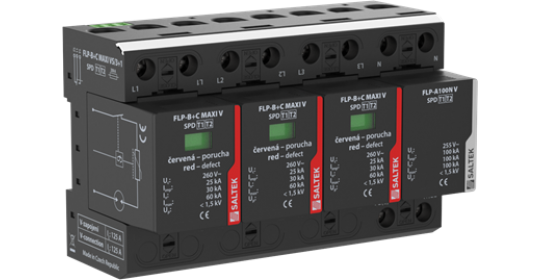

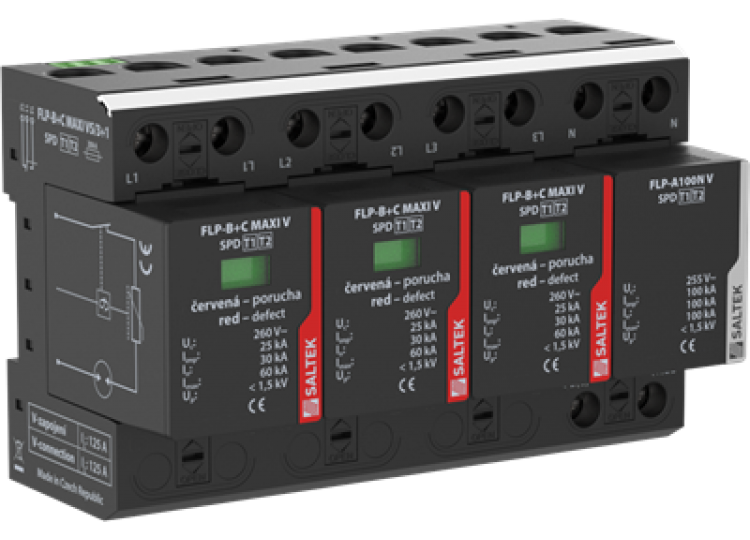

Pluggable module, visual fault signalling, module locking, remote fault signalling.
- Combination of three-pole high performance lightning current arrester and encapsulated efficiency spark gap, connected in the 3+1 mode.
- Installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards.
- For protection against impact of direct or indirect lightning strikes in wide range of applications – houses, office or industrial buildings, resp. to sub-distribution boards in large buildings.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T1,T2 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
230
V AC |
|
Maximum operating voltage L-N |
Uc |
260.00
V AC |
|
Maximum operating voltage N-PE |
Uc |
255.00
V AC |
|
Nominal load current for
"V" connection |
IL |
125
A |
|
Type of network |
TT |
|
|
Maximum overcurrent protection |
250
A gL/gG |
|
|
Maximum overcurrent protection for
"V" connection |
125
A gL/gG |
|
|
Short-circuit current rating |
ISCCR |
50.0
kA |
|
Total discharge current (10/350 µs) |
ITotal(10/350) |
100.00
kA |
|
Lightning impulse current (10/350
µs) L-N |
Iimp |
25.00
kA |
|
Lightning impulse current (10/350
µs) N-PE |
Iimp |
100.00
kA |
|
Nominal discharge current (8/20 µs)
L-N |
In |
30.00
kA |
|
Nominal discharge current (8/20 µs)
N-PE |
In |
100.00
kA |
|
Maximum discharge current (8/20 µs)
L-N |
Imax |
60.00
kA |
|
Maximum discharge current (8/20 µs)
N-PE |
Imax |
100.00
kA |
|
Voltage protection level mode L-N |
Up |
1.50
kV |
|
Voltage protection level mode L-PE |
Up |
2.20
kV |
|
Voltage protection level mode N-PE |
Up |
1.50
kV |
|
Residual voltage of MOV at In |
URES |
0.85
kV |
|
Ability to independently switch off
the following current N-PE |
Ifi |
0.1
kA |
|
Response time L-N |
ta |
100
ns |
|
Response time N-PE |
ta |
100
ns |
|
TOV 5 s L-N |
335
V |
|
|
TOV characteristic (TOV 5 s) |
withstand |
|
|
TOV 120 min L-N |
440
V |
|
|
TOV characteristic (120 min) |
withstand |
|
|
TOV 200 ms N-PE |
1
200 V |
|
|
TOV characteristic (TOV 200 ms) |
withstand |
|
|
Cross-section of connected
conductors solid (min) |
2.50
mm2 |
|
|
Cross-section of connected
conductors solid (max) |
50.00
mm2 |
|
|
Cross-section of connected
conductors stranded (min) |
2.50
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
35.00
mm2 |
|
|
Cross-section of remote indication
conductors solid (max) |
1.5
mm2 |
|
|
Cross-section of remote indication conductors
stranded (max) |
1.5
mm2 |
|
|
Fault indication L-N |
red
indication field |
|
|
Fault indication N-PE |
no |
|
|
Remote indication |
potential-free
change-over contact |
|
|
Remote indication contacts |
250V/0,5A
AC,250V/0,1A DC |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 80 °C |
|
|
Humidity |
5
- 95 % |
|
|
According to standard |
EN
61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM Class |
EC001457 |
|
|
Plug module |
FLP-B+C
MAXI V/0|FLP-A100N V/0 |
|
|
Customs tariff number |
85363090 |
|
|
EAN |
8595090535720 |
Dimensions:
Combination of lightning , TT, 100 kA (10/350 µs), 100 kA (8/20 µs)
