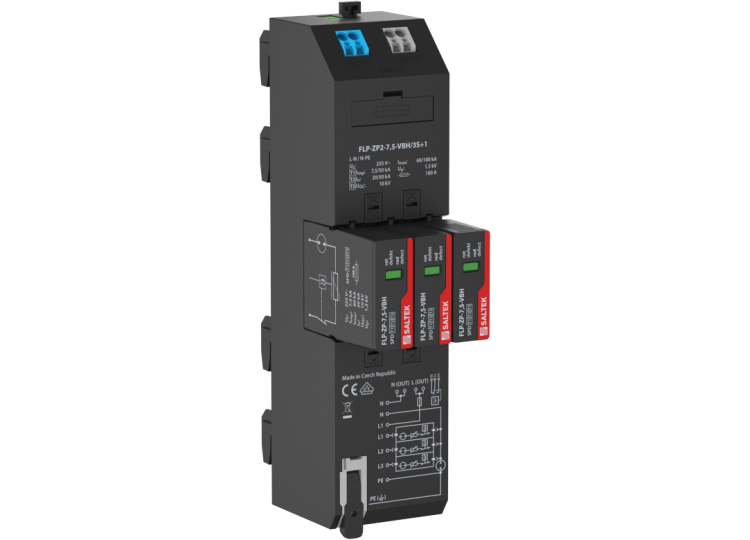

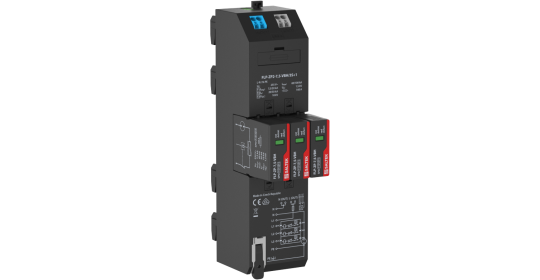

SALTEK - FLP-ZP2-7,5-VBH/3S+1 - SPD - for low voltage| DAFNIA

Description
Reviews (0)

Pluggable module, visual fault signalling, module locking, terminals for supply, onto 40 mm busbar systém, remote fault signalling.

High performance lightning current arrester, installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards upstream power meters.
For protection against impact of direct or indirect lightning strikes in wide range of applications – houses, office or industrial buildings, resp. to sub-distribution boards in large buildings.
Protected supply of power meters assembly.

Specifications:

Parameter name		Parameter value
Type of SPD		T1,T2,T3
Mounting		40 mm busbar system
Nominal voltage	U_n	230 V AC
Maximum operating voltage L-N	U_c	255.00 V AC
Maximum operating voltage N-PE	U_c	255.00 V AC
Nominal load current - auxiliary output terminals L, N		6.3 A
Type of network		TN-S\|TT
Maximum overcurrent protection		160 A gL/gG
Short-circuit current rating	I_SCCR	25.0 kA
Total discharge current (10/350 µs)	I_{Total(10/350)}	30.00 kA
Lightning impulse current (10/350 µs) L-N	I_imp	7.50 kA
Lightning impulse current (10/350 µs) N-PE	I_imp	50.00 kA
Nominal discharge current (8/20 µs) L-N	I_n	20.00 kA
Nominal discharge current (8/20 µs) N-PE	I_n	50.00 kA
Test voltage	U_oc	10.0 kV
Total discharge current (8/20 µs)	I_Total(8/20)	100.00 kA
Maximum discharge current (8/20 µs) L-N	I_max	60.00 kA
Maximum discharge current (8/20 µs) N-PE	I_max	100.00 kA
Voltage protection level mode L-N	U_p	1.50 kV
Voltage protection level mode L-PE	U_p	1.50 kV
Voltage protection level mode N-PE	U_p	1.50 kV
Response time L-N	t_a	100 ns
Response time N-PE	t_a	100 ns
TOV 5 s L-N		335 V
TOV 5 s L-PE		440 V
TOV characteristic (TOV 5 s)		withstand
TOV 120 min L-N		440 V
TOV 120 min L-PE		335 V
TOV characteristic (120 min)		withstand
TOV 200 ms N-PE		1 200 V
TOV characteristic (TOV 200 ms)		withstand
Cross-section of connected conductors solid (min)		1.00 mm²
Cross-section of connected conductors solid (max)		16.00 mm²
Cross-section of connected conductors stranded (min)		1.00 mm²
Cross-section of connected conductors stranded (max)		16.00 mm²
Cross-section of connected conductors solid (max) - aux. out terminals L, N		4.00 mm²
Cross-section of connected conductors stranded (max) - aux. out terminals L, N		2.50 mm²
Cross-section of remote indication conductors solid (max)		1.5 mm²
Cross-section of remote indication conductors stranded (max)		1.5 mm²
Fault indication		red indication field
Remote indication		potential-free change-over contact
Remote indication contacts		250V/0,5A AC,250V/0,1A DC
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC000381
Plug module		FLP-ZP-7,5-VBH/0
Customs tariff number		85363090
EAN		8595090570295
