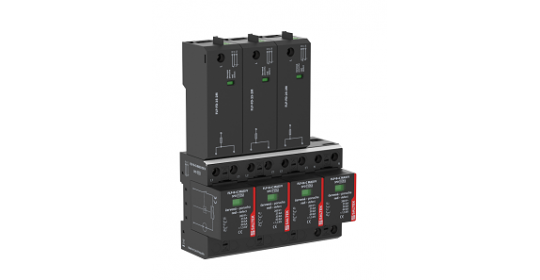

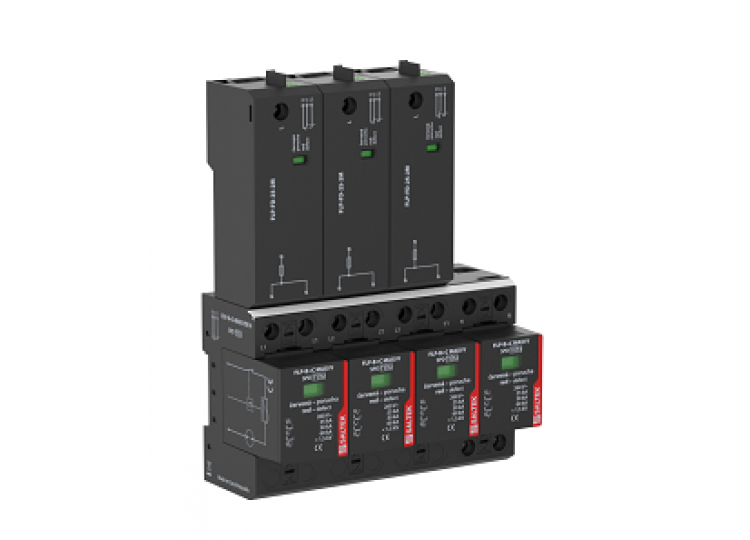

SALTEK - FLP-B+C-MAXI-VSF/4 - SPD - for low voltage| DAFNIA

Pluggable module, visual fault signalling, module locking, remote fault signalling.

Four-pole high performance lightning current arrester.
Installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards.
For protection against impact of direct or indirect lightning strikes in wide range of applications – office or industrial buildings.
No follow current, zero leakage current.
With integrated backup fuse.

Specifications:

Parameter name			Parameter value
Type of SPD			T1,T2
Mounting		DIN rail 35 mm
Nominal voltage	U_n		230 V AC
Maximum operating voltage	U_c		260.00 V AC
Type of network			TN-S
Maximum overcurrent protection			-
Short-circuit current rating	I_SCCR		50.0 kA
Lightning impulse current (10/350 µs)	I_imp		25.00 kA
Nominal discharge current (8/20 µs)	I_n		30.00 kA
Maximum discharge current (8/20 µs)	I_max		60.00 kA
Voltage protection level	U_p		1.50 kV
Response time	t_a		100 ns
TOV 5 s L-N			335 V
TOV characteristic (TOV 5 s)			withstand
TOV 120 min L-N			440 V
TOV characteristic (120 min)			withstand
Cross-section of connected conductors solid (min)			2.50 mm²
Cross-section of connected conductors solid (max)			50.00 mm²
Cross-section of connected conductors stranded (min)			2.50 mm²
Cross-section of connected conductors stranded (max)			35.00 mm²
Cross-section of remote indication conductors solid (max)			1.5 mm²
Cross-section of remote indication conductors stranded (max)			1.5 mm²
Fault indication			red indication field
Remote indication			potential-free change-over contact
Remote indication contacts			250V/0,5A AC,250V/0,1A DC
Degree of protection			IP 20
Range of ambient temperatures (min/max)			-40 / 80 °C
Humidity			5 - 95 %
According to standard			EN 61643-11:2012, IEC 61643-11:2011
ETIM Class			EC001457
Plug module			FLP-B+C MAXI V/0
Customs tariff number			85363090
EAN			8595090571193
