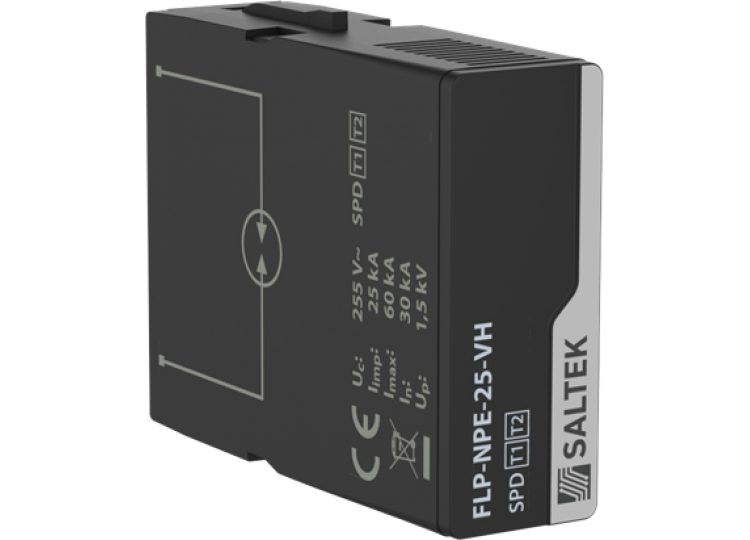

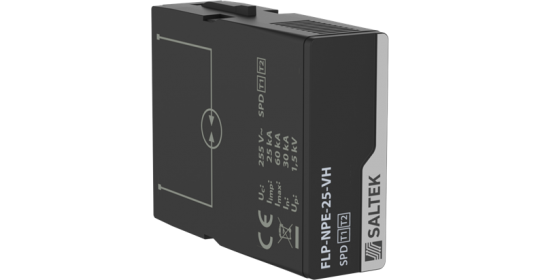

- Replacement NPE module for FLP-1...-V.H/1.+1.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T1,T2 |
|
|
Maximum operating voltage |
Uc |
255.00
V AC |
|
Lightning impulse current (10/350
µs) |
Iimp |
25.00
kA |
|
Nominal discharge current (8/20 µs) |
In |
30.00
kA |
|
Maximum discharge current (8/20 µs) |
Imax |
60.00
kA |
|
Voltage protection level |
Up |
1.50
kV |
|
Ability to independently switch off
the following current |
Ifi |
0.1
kA |
|
Response time |
ta |
100
ns |
|
ETIM Class |
EC000941 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090570660 |
Dimensions:
Replacement NPE module for FLP-1...-V.H/1.+1
