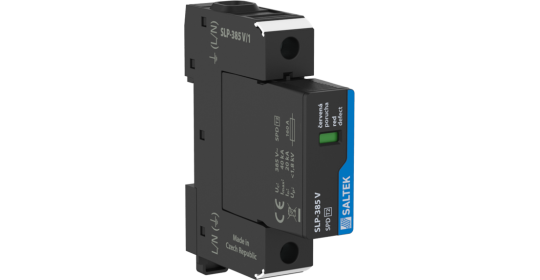

SALTEK - SLP-385 V/1 - SPD - for low voltage| DAFNIA

Pluggable module, visual fault signalling.

Varistor surge arrester.
Installation to LV installations, especially to sub-distribution boards.
For protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.

Specifications:

Parameter name		Parameter value
Type of SPD		T2
Mounting		DIN rail 35 mm
Maximum operating voltage	U_c	385.00 V AC
Maximum operating voltage	U_c	500.00 V DC
Type of network		TN
Maximum overcurrent protection		160 A gL/gG
Short-circuit current rating	I_SCCR	50.0 kA
Nominal discharge current (8/20 µs)	I_n	20.00 kA
Maximum discharge current (8/20 µs)	I_max	40.00 kA
Voltage protection level	U_p	1.80 kV
Voltage protection level at 5 kA	U_p	1.30 kV
Response time	t_a	25 ns
TOV 120 min L-N		440 V
TOV characteristic (120 min)		withstand
Cross-section of connected conductors solid (min)		1.00 mm²
Cross-section of connected conductors solid (max)		35.00 mm²
Cross-section of connected conductors stranded (min)		1.00 mm²
Cross-section of connected conductors stranded (max)		25.00 mm²
Fault indication		red indication field
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC000941
Plug module		SLP-385 V/0
Customs tariff number		85363030
EAN		8595090519553
