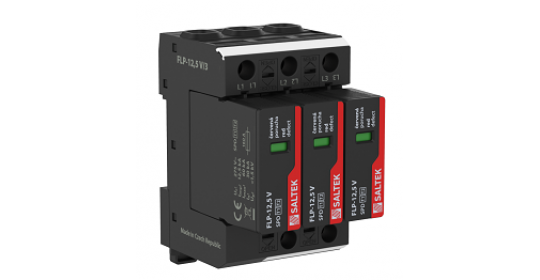

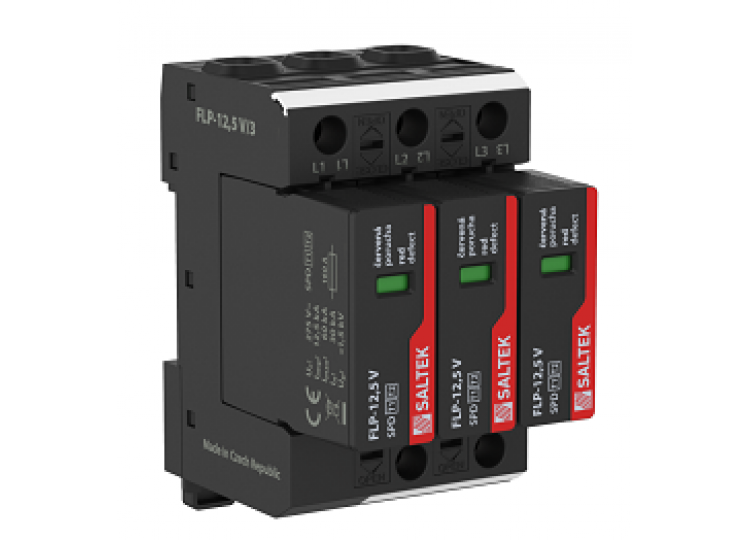

SALTEK - FLP-12,5 V/3 - SPD - for low voltage| DAFNIA

Pluggable module, visual fault signalling, module locking.

Three-pole varistor lightning current arrester.
Installation at the boundary of zones LPZ 0 and LPZ 1 or higher, for objects in LPL III and IV.
For protection against impact of partial lightning currents, induced overvoltages during a lightning strike or switching overvoltages.

Specifications:

Parameter name		Parameter value
Type of SPD		T1,T2
Mounting		DIN rail 35 mm
Nominal voltage	U_n	230 V AC
Maximum operating voltage	U_c	275.00 V AC
Maximum operating voltage	U_c	350.00 V DC
Type of network		TN
Maximum overcurrent protection		160 A gL/gG
Short-circuit current rating	I_SCCR	50.0 kA
Total discharge current (10/350 µs)	I_{Total(10/350)}	37.50 kA
Lightning impulse current (10/350 µs)	I_imp	12.50 kA
Nominal discharge current (8/20 µs)	I_n	30.00 kA
Maximum discharge current (8/20 µs)	I_max	60.00 kA
Voltage protection level	U_p	1.50 kV
Voltage protection level at 5 kA	U_p	0.90 kV
Response time	t_a	25 ns
TOV 5 s L-N		335 V
TOV characteristic (TOV 5 s)		withstand
Cross-section of connected conductors solid (min)		1.00 mm²
Cross-section of connected conductors solid (max)		35.00 mm²
Cross-section of connected conductors stranded (min)		1.00 mm²
Cross-section of connected conductors stranded (max)		25.00 mm²
Fault indication		red indication field
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC001457
Plug module		FLP-12,5 V/0
Customs tariff number		85363090
EAN		8595090534259
