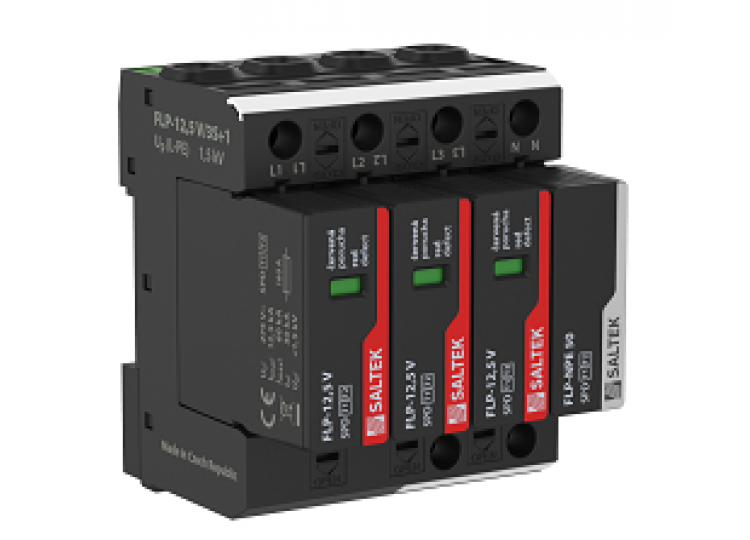

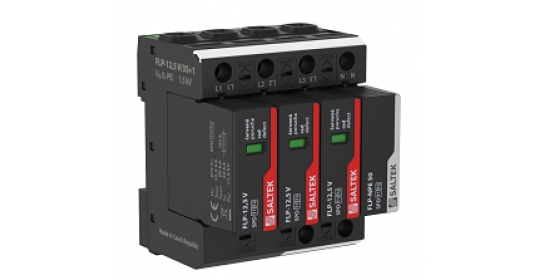

Pluggable module, visual fault signalling, module
locking, remote fault signalling.
- Combination of varistor lightning current arrester
and encapsulated efficiency spark gap, connected in the 3+1 mode.
- Installation at the boundary of zones LPZ 0
and LPZ 1 or higher, for objects in LPL III and IV.
- For protection against impact of partial lightning currents, induced overvoltages during a lightning strike or switching overvoltages.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
T1,T2 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Nominal
voltage |
Un |
230 V AC |
|
Maximum
operating voltage L-N |
Uc |
275.00 V AC |
|
Maximum
operating voltage N-PE |
Uc |
255.00 V AC |
|
Type
of network |
TT |
|
|
Maximum
overcurrent protection |
160 A gL/gG |
|
|
Short-circuit
current rating |
ISCCR |
50.0 kA |
|
Total
discharge current (10/350 µs) |
ITotal(10/350) |
50.00 kA |
|
Lightning
impulse current (10/350 µs) L-N |
Iimp |
12.50 kA |
|
Lightning
impulse current (10/350 µs) N-PE |
Iimp |
50.00 kA |
|
Nominal
discharge current (8/20 µs) L-N |
In |
30.00 kA |
|
Nominal
discharge current (8/20 µs) N-PE |
In |
50.00 kA |
|
Maximum
discharge current (8/20 µs) L-N |
Imax |
60.00 kA |
|
Maximum
discharge current (8/20 µs) N-PE |
Imax |
100.00 kA |
|
Voltage
protection level mode L-N |
Up |
1.50 kV |
|
Voltage
protection level mode L-PE |
Up |
1.50 kV |
|
Voltage
protection level mode N-PE |
Up |
1.50 kV |
|
Voltage
protection level at 5 kA L-N |
Up |
0.90 kV |
|
Ability
to independently switch off the following current N-PE |
Ifi |
0.1 kA |
|
Response
time L-N |
ta |
25 ns |
|
Response
time N-PE |
ta |
100 ns |
|
TOV
5 s L-N |
335 V |
|
|
TOV
characteristic (TOV 5 s) |
withstand |
|
|
TOV
200 ms N-PE |
1 200 V |
|
|
TOV
characteristic (TOV 200 ms) |
withstand |
|
|
Cross-section
of connected conductors solid (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
35.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
25.00 mm2 |
|
|
Cross-section
of remote indication conductors solid (max) |
1.5 mm2 |
|
|
Cross-section
of remote indication conductors stranded (max) |
1.5 mm2 |
|
|
Fault
indication L-N |
red indication field |
|
|
Remote
indication |
potential-free change-over contact |
|
|
Remote
indication contacts |
250V/0,5A AC,250V/0,1A DC |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM
Class |
EC001457 |
|
|
Plug
module |
FLP-12,5 V/0 |
|
|
Customs
tariff number |
85363090 |
|
|
EAN |
8595090534280 |
Dimensions:
Replacement module: FLP-12,5 V/0
Lightning current and surge arrester ,TT, 50 kA (10/350 µs), 100 kA (8/20 µs)
