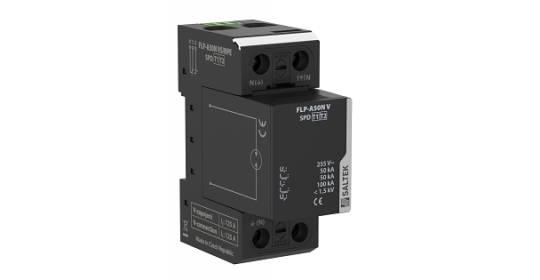

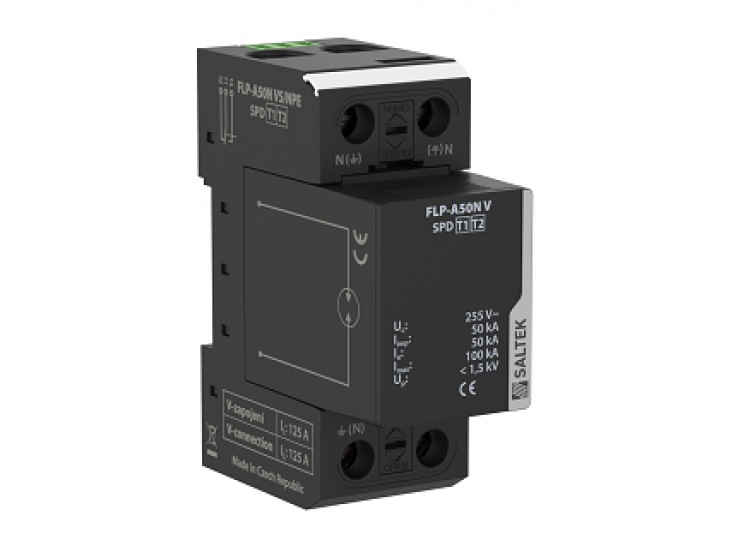

SALTEK - FLP-A50N VS/NPE - SPD - for low voltage| DAFNIA

park gap for N-PE, pluggable module, module locking.

For connection Type 1 SPD in 1+1 mode.
Installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards.
For protection against impact of direct or indirect lightning strikes.

Specifications:

ameter name		Parameter value
Type of SPD		T1
Mounting		DIN rail 35 mm
Maximum operating voltage	U_c	255.00 V AC
Nominal load current for "V" connection	I_L	125 A
Type of network		TT
Residual current	I_PE	0.004 mA
Nominal discharge current (8/20 µs)	I_n	50.00 kA
Maximum discharge current (8/20 µs)	I_max	100.00 kA
Voltage protection level	U_p	1.50 kV
Ability to independently switch off the following current	I_fi	0.1 kA
Response time	t_a	100 ns
TOV 200 ms N-PE		1 200 V
TOV characteristic (TOV 200 ms)		withstand
Cross-section of connected conductors solid (min)		2.50 mm²
Cross-section of connected conductors solid (max)		50.00 mm²
Cross-section of connected conductors stranded (min)		2.50 mm²
Cross-section of connected conductors stranded (max)		35.00 mm²
Cross-section of remote indication conductors solid (max)		1.5 mm²
Cross-section of remote indication conductors stranded (max)		1.5 mm²
Fault indication		remote signalling of N-PE module shows the presence of the replaceable module
Remote indication		potential-free change-over contact
Remote indication contacts		250V/0,5A AC,250V/0,1A DC
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC000381
Plug module		FLP-A50N V/0
Customs tariff number		85363090
EAN		8595090535737
