Pluggable module, visual fault signalling.
- Combination of combined type surge arrester (serial combination varistor+GDT) and encapsulated spark gap, connected in the 3+1 mode.
- Installation to LV installations, especially to sub-distribution boards in areas with unstable grid voltage and where diesel generators are used, suitable also for measuring circuits.
- For protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits.
- Zero leakage current.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
T2 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Nominal
voltage |
Un |
230/400 V AC |
|
Maximum
operating voltage L-N |
Uc |
275.00 V AC |
|
Maximum
operating voltage N-PE |
Uc |
255.00 V AC |
|
Type
of network |
TT|TN-S |
|
|
Maximum
overcurrent protection |
125 A gL/gG |
|
|
Short-circuit
current rating |
ISCCR |
50.0 kA |
|
Residual
current |
IPE |
0.002 mA |
|
Nominal
discharge current (8/20 µs) |
In |
20.00 kA |
|
Maximum
discharge current (8/20 µs) |
Imax |
40.00 kA |
|
Voltage
protection level mode L-N |
Up |
1.50 kV |
|
Voltage
protection level mode L-PE |
Up |
2.50 kV |
|
Voltage
protection level mode N-PE |
Up |
1.50 kV |
|
Ability
to independently switch off the following current N-PE |
Ifi |
0.1 kA |
|
Response
time |
ta |
100 ns |
|
TOV
5 s L-N |
335 V |
|
|
TOV
characteristic (TOV 5 s) |
withstand |
|
|
TOV
120 min L-N |
440 V |
|
|
TOV
characteristic (120 min) |
withstand |
|
|
TOV
200 ms L-PE |
1 455 V |
|
|
TOV
200 ms N-PE |
1 200 V |
|
|
TOV
characteristic (TOV 200 ms) |
withstand |
|
|
Cross-section
of connected conductors solid (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
35.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
25.00 mm2 |
|
|
Fault
indication |
red indication field |
|
|
Remote
indication |
no |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM
Class |
EC000941 |
|
|
Plug
module |
SLP-275-VB/0|SLP-NPE V/0 |
|
|
Customs
tariff number |
85363030 |
|
|
EAN |
8595090570592 |
Dimensions:

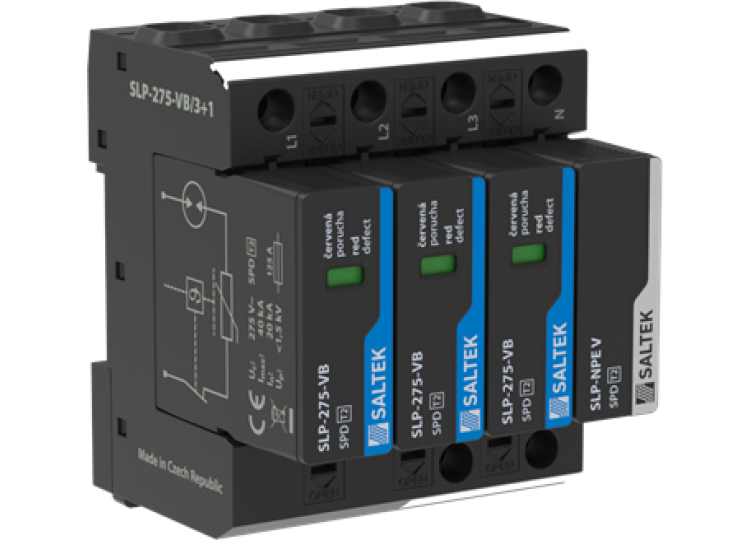

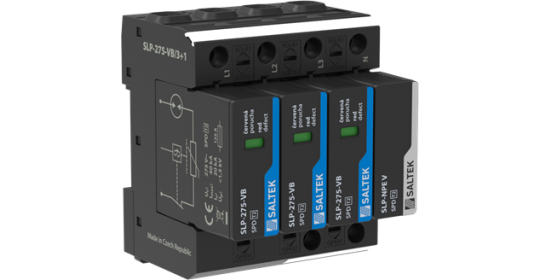

Combined type surge arrester ,TN-S and TT systems, 40 kA (8/20 µs)
