Pluggable module, visual fault signalling, remote fault signalling.
- Combined type surge arrester (serial combination varistor+GDT).
- Installation to LV installations, especially to sub-distribution boards, suitable also for measuring circuits.
- For protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits.
- No leakage current.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
T2 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
75.00 V AC |
|
Maximum
operating voltage |
Uc |
100.00 V DC |
|
Type
of network |
TN |
|
|
Maximum
overcurrent protection |
125 A gL/gG |
|
|
Short-circuit
current rating |
ISCCR |
35.0 kA |
|
Nominal
discharge current (8/20 µs) |
In |
15.00 kA |
|
Maximum
discharge current (8/20 µs) |
Imax |
25.00 kA |
|
Voltage
protection level |
Up |
0.60 kV |
|
Voltage
protection level at 5 kA |
Up |
0.30 kV |
|
Response
time |
ta |
100 ns |
|
Cross-section
of connected conductors solid (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors solid (max) |
35.00 mm2 |
|
|
Cross-section
of connected conductors stranded (min) |
1.00 mm2 |
|
|
Cross-section
of connected conductors stranded (max) |
25.00 mm2 |
|
|
Cross-section
of remote indication conductors solid (max) |
1.5 mm2 |
|
|
Cross-section
of remote indication conductors stranded (max) |
1.5 mm2 |
|
|
Fault
indication |
red indication field |
|
|
Remote
indication |
potential-free change-over contact |
|
|
Remote
indication contacts |
250V/0,5A AC,250V/0,1A DC |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
Humidity |
5 - 95 % |
|
|
According
to standard |
EN 61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM
Class |
EC000941 |
|
|
Plug
module |
SLP-075 VB/0 |
|
|
Customs
tariff number |
85363030 |
|
|
EAN |
8595090521563 |
Dimensions:

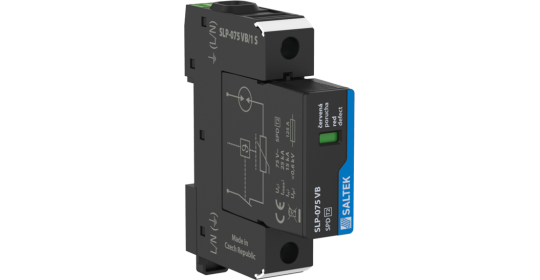

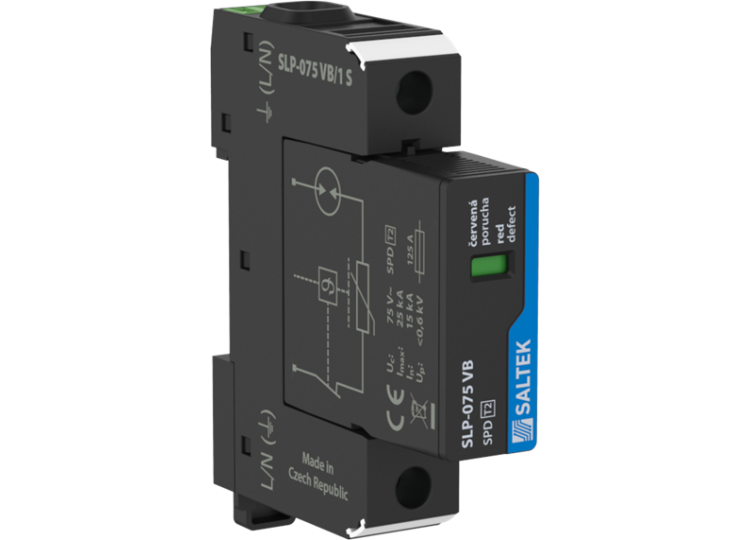

Combined type surge arrester ,TN and TT systems ,75 V AC, 25 kA (8/20 µs).
