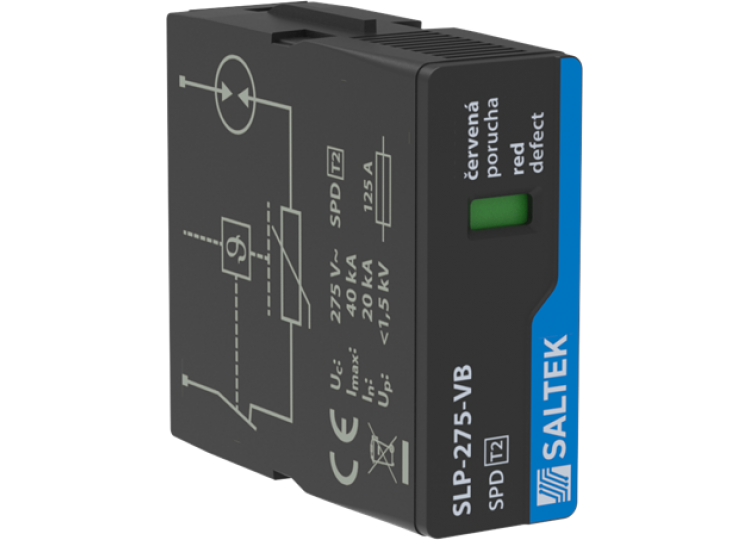

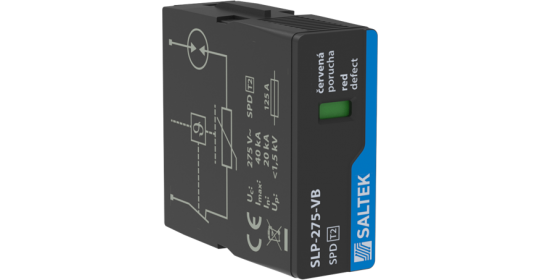

Replacement module for SLP-275-VB/…
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
T2 |
|
|
Maximum
operating voltage |
Uc |
275.00 V AC |
|
Short-circuit
current rating |
ISCCR |
50.0 kA |
|
Nominal
discharge current (8/20 µs) |
In |
20.00 kA |
|
Maximum
discharge current (8/20 µs) |
Imax |
40.00 kA |
|
Voltage
protection level |
Up |
1.50 kV |
|
Response
time |
ta |
100 ns |
|
Fault
indication |
red indication field |
|
|
ETIM
Class |
EC000941 |
|
|
Customs
tariff number |
85363030 |
|
|
EAN |
8595090570653 |
Dimensions:
Replacement module for SLP-275-VB/…
