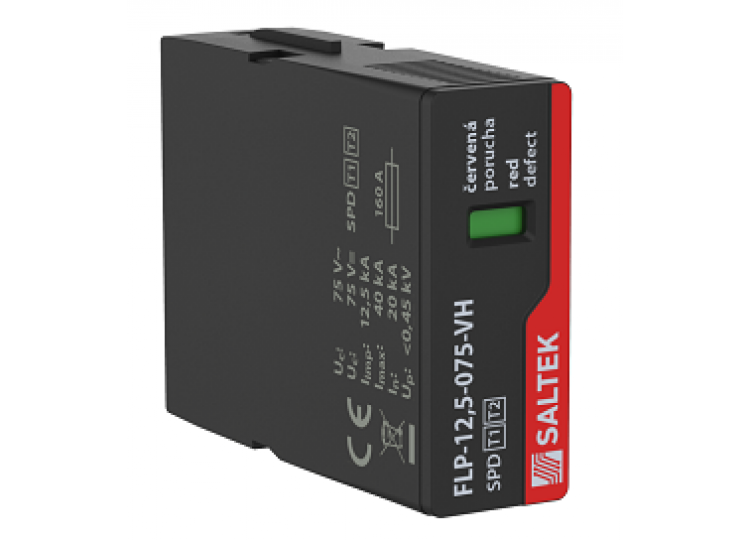

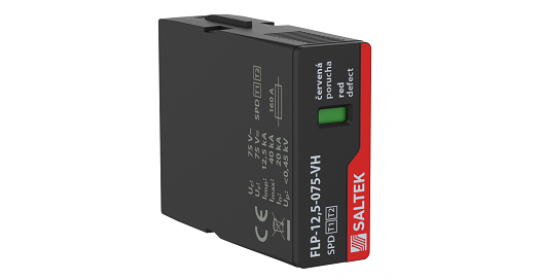

Replacement module for FLP-12,5-075-VH/x.
Specifications:
Parameter name |
Parameter value |
|
|
Type of SPD |
T1,T2 |
|
|
Maximum operating voltage |
Uc |
75.00 V AC |
|
Maximum operating voltage |
Uc |
75.00 V DC |
|
Short-circuit current rating |
ISCCR |
25.0 kA |
|
Lightning impulse current (10/350 µs) |
Iimp |
12.50 kA |
|
Nominal discharge current (8/20 µs) |
In |
20.00 kA |
|
Maximum discharge current (8/20 µs) |
Imax |
40.00 kA |
|
Voltage protection level |
Up |
0.45 kV |
|
Response time |
ta |
25 ns |
|
Fault indication |
red indication field |
|
|
ETIM Class |
EC000381 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090545712 |
Dimensions:
Replacement module for FLP-12,5-075-VH/x
