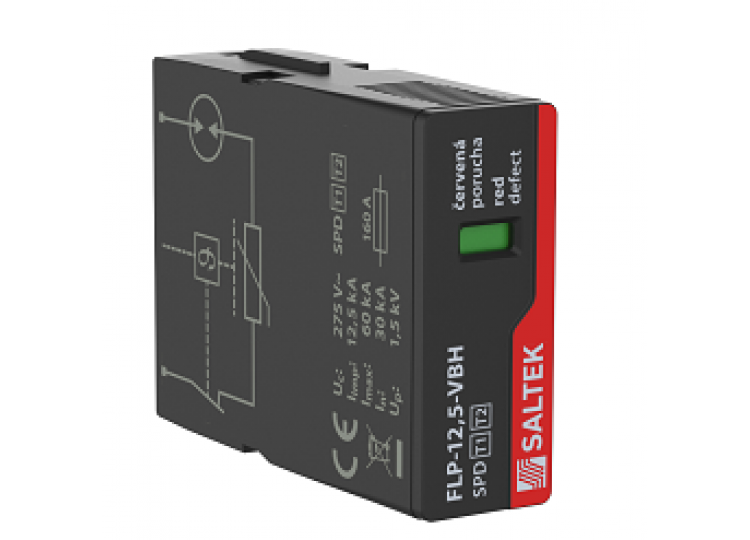

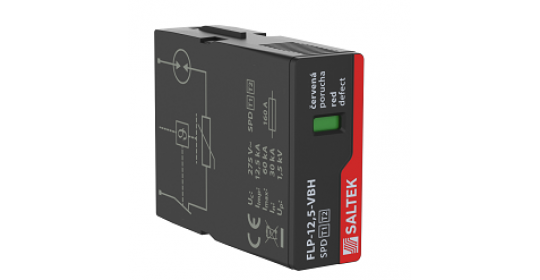

• Replacement module for FLP-(EV)12,5-VBH/x

Replacement module for FLP-(EV)12,5-VBH/x.


Specifications:

Parameter name

Parameter value

Type of SPD

T1,T2

Maximum operating voltage

Uc

275.00 V AC

Short-circuit current rating

ISCCR

50.0 kA

Lightning impulse current (10/350 µs)

Iimp

12.50 kA

Nominal discharge current (8/20 µs)

In

30.00 kA

Maximum discharge current (8/20 µs)

Imax

60.00 kA

Voltage protection level

Up

1.50 kV

Response time

ta

100 ns

Fault indication

red indication field

Customs tariff number

85363030

EAN

8595090570509



Dimensions:
