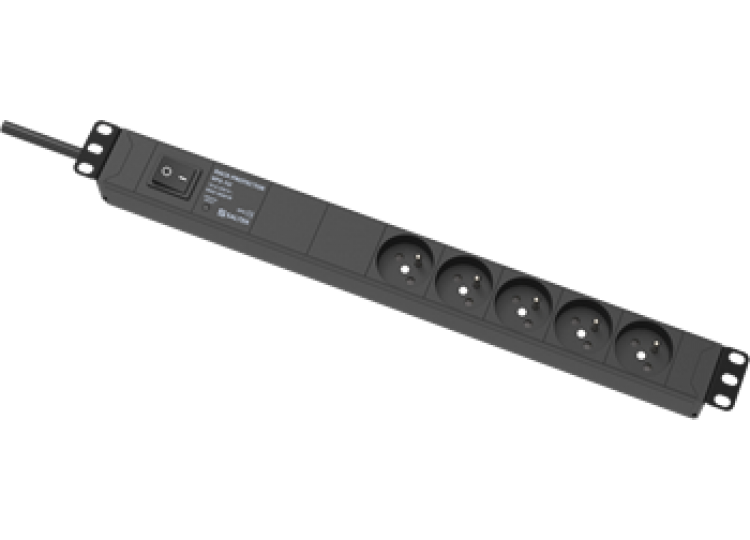

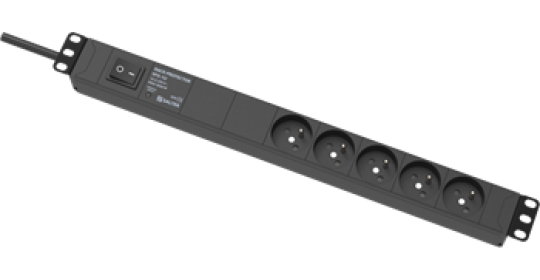

SALTEK - RACK-PROTECTOR-VF5-1U - SPD - for low voltage| DAFNIA

Visual fault signalling, 3 m power supply cord, CEE 7/7 plug type, on/off switch, RFI filter.

Multiple socket outlet with integrated surge protection SPD Type 3 and RFi filter.
For 19" RACK.
For protection of information technology equipments against surge voltage and RF disturbance.
Mounting height 1U.
5x socket outlet - French type.

Specifications:

Parameter name		Parameter value
Type of SPD		T3
Mounting		19" rack
VF filter		yes
Nominal voltage	U_n	230 V AC
Maximum operating voltage	U_c	275.00 V AC
Nominal load current	I_L	16.000 A
Type of network		TN
Maximum overcurrent protection		16 A gL/gG or C 16 A
Short-circuit current rating	I_SCCR	6.0 kA
Residual current	I_PE	0.700 mA
Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical		30 dB
Nominal discharge current (8/20 µs) L-N	I_n	3.00 kA
Nominal discharge current (8/20 µs) L+N-PE	I_n	5.00 kA
Nominal discharge current (8/20 µs) N-PE	I_n	3.00 kA
Test voltage L-N	U_oc	6.0 kV
Test voltage N-PE	U_oc	6.0 kV
Test voltage L+N-PE	U_oc	10.0 kV
Voltage protection level mode L-N	U_p	1.20 kV
Voltage protection level mode L-PE	U_p	1.50 kV
Voltage protection level mode N-PE	U_p	1.50 kV
Response time L-N	t_a	25 ns
Response time N-PE	t_a	100 ns
Fault indication		red indicator
Degree of protection		IP 40
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC000942
Customs tariff number		85363010
EAN		8595090558750
