Visual fault signalling,3 m power supply cord, CEE 7/7 type plug.

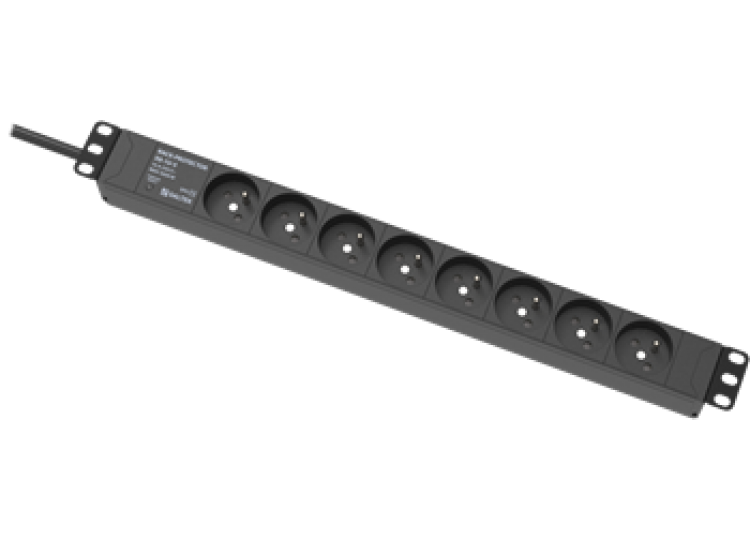

- Multiple socket outlet with integrated surge protection SDP Type 3.
- For 19"" RACK.
- For protection of information technology equipments against surge voltage.
- Mounting height 1U.
- 8x socket - French type.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T3 |
|
|
Mounting |
19"
rack |
|
|
Nominal voltage |
Un |
230
V AC |
|
Maximum operating voltage |
Uc |
275.00
V AC |
|
Nominal load current |
IL |
16.000
A |
|
Type of network |
TN |
|
|
Maximum overcurrent protection |
16
A gL/gG or C 16 A |
|
|
Short-circuit current rating |
ISCCR |
6.0
kA |
|
Residual current |
IPE |
0.004
mA |
|
Nominal discharge current (8/20 µs)
L-N |
In |
3.00
kA |
|
Nominal discharge current (8/20 µs)
L+N-PE |
In |
5.00
kA |
|
Nominal discharge current (8/20 µs)
N-PE |
In |
3.00
kA |
|
Test voltage L-N |
Uoc |
6.0
kV |
|
Test voltage N-PE |
Uoc |
6.0
kV |
|
Test voltage L+N-PE |
Uoc |
10.0
kV |
|
Voltage protection level mode L-N |
Up |
1.20
kV |
|
Voltage protection level mode L-PE |
Up |
1.50
kV |
|
Voltage protection level mode N-PE |
Up |
1.50
kV |
|
Response time L-N |
ta |
25
ns |
|
Response time N-PE |
ta |
100
ns |
|
Fault indication |
red
indicator |
|
|
Degree of protection |
IP
40 |
|
|
According to standard |
EN
61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM Class |
EC000942 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090570097 |
Dimensions:
Multi socket outlet , SPD Type 3 for rack 19"
