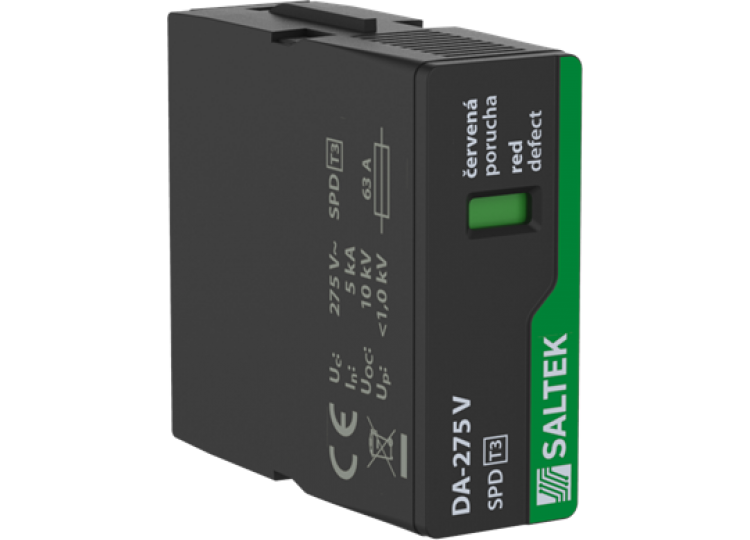

Replacement L-N module for DA-275 V/x+1.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T3 |
|
|
Maximum operating voltage |
Uc |
275.00
V AC |
|
Nominal discharge current (8/20 µs) |
In |
5.00
kA |
|
Test voltage |
Uoc |
10.0
kV |
|
Voltage protection level |
Up |
1.00
kV |
|
Response time |
ta |
25
ns |
|
Fault indication |
red
indication field |
|
|
ETIM Class |
EC000942 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090535942 |
Dimensions:
Replacement varistor module for DA-275 V/x+1
