- Coupling impedance.
- For coordination of SPDs type 1 and 2 or type 2 and 3.
Specifications:
Parameter name |
Parameter
value |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
450
V AC |
|
Nominal load current |
IL |
16.000
A |
|
Frequency |
f |
50
Hz |
|
Resistance |
R |
7
mOhm |
|
Inductance |
L |
3.20
uH |
|
Maximum overcurrent protection |
16
A gL/gG or C 16 A |
|
|
Power loss at IL |
1.66
W |
|
|
Cross-section of connected
conductors solid (max) |
10.00
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
10.00
mm2 |
|
|
Cross-section of connected wires
stranded with ferrule (max) |
10.00
mm2 |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 40 °C |
|
|
ETIM Class |
EC002496 |
|
|
Customs tariff number |
85363010 |
|
|
EAN |
8595090541776 |
Dimensions:
Datasheet:

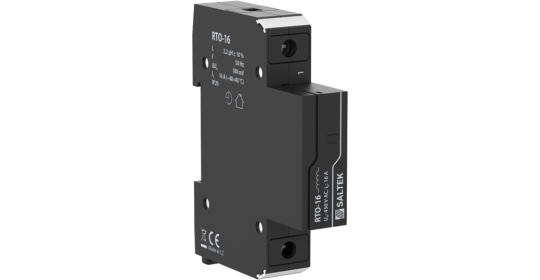

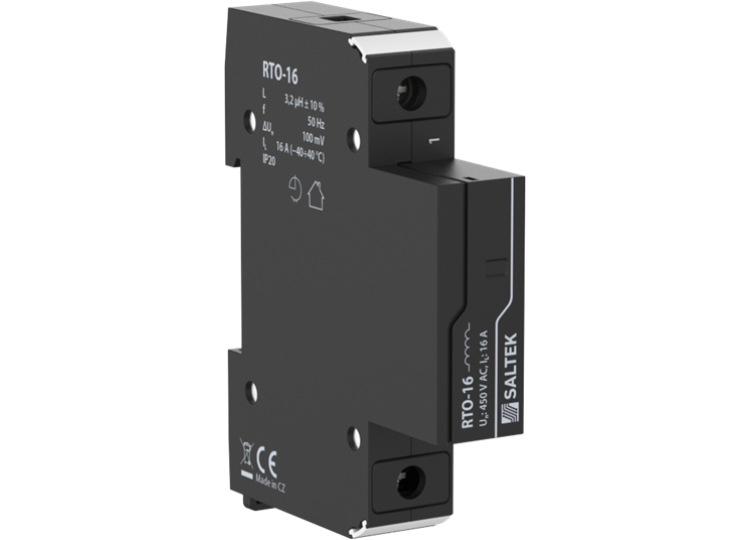

Separating inductor (bridge) for coordination of SPDs, up to 16 A.
