- Coupling impedance.
- For coordination of SPDs type 1 and 2 or type 2 and 4.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Nominal voltage |
Un |
450
V AC |
|
Nominal load current |
IL |
32.000
A |
|
Frequency |
f |
50
Hz |
|
Resistance |
R |
4
mOhm |
|
Inductance |
L |
5.40
uH |
|
Maximum overcurrent protection |
32
A gL/gG or C 32 A |
|
|
Power loss at IL |
3.68
W |
|
|
Cross-section of connected
conductors solid (max) |
10.00
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
10.00
mm2 |
|
|
Cross-section of connected wires
stranded with ferrule (max) |
10.00
mm2 |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 30 °C |
|
|
ETIM Class |
EC002496 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090541783 |
Dimensions:

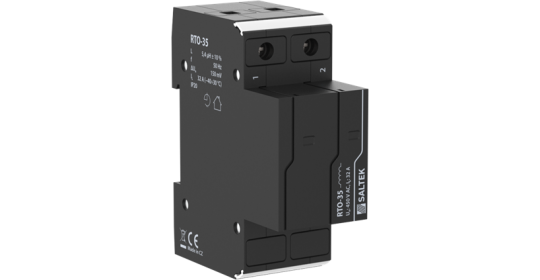

Separating inductor (bridge) for coordination of SPDs, up to 32 A.
