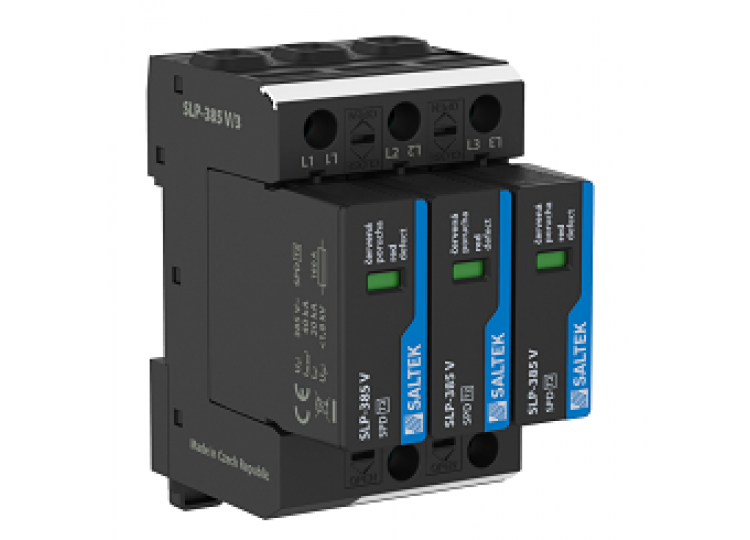

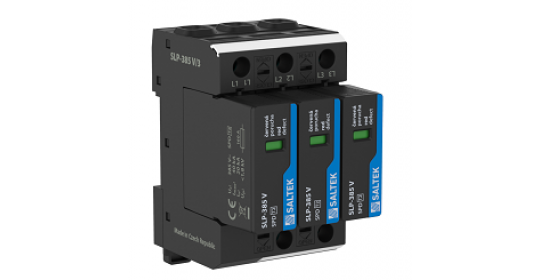

Pluggable
module, visual fault signalling, module locking.
- Three-pole
varistor surge arrester.
- Installation
to LV installations, especially to sub-distribution boards in TN-C systems or
TN-S without neutral conductor
- For
protection of the installations and equipments against impact of induced
overvoltages during a lightning strike or switching overvoltages.
- For applications with fluctuating voltage.
Specifications:
|
Parameter name |
Parameter
value |
|
|
Type of SPD |
T2 |
|
|
Mounting |
DIN
rail 35 mm |
|
|
Maximum operating voltage |
Uc |
385.00
V AC |
|
Maximum operating voltage |
Uc |
500.00
V DC |
|
Type of network |
TN |
|
|
Maximum overcurrent protection |
160
A gL/gG |
|
|
Short-circuit current rating |
ISCCR |
50.0
kA |
|
Nominal discharge current (8/20 µs) |
In |
20.00
kA |
|
Maximum discharge current (8/20 µs) |
Imax |
40.00
kA |
|
Voltage protection level |
Up |
1.80
kV |
|
Voltage protection level at 5 kA |
Up |
1.30
kV |
|
Response time |
ta |
25
ns |
|
TOV 120 min L-N |
440
V |
|
|
TOV characteristic (120 min) |
withstand |
|
|
Cross-section of connected
conductors solid (min) |
1.00
mm2 |
|
|
Cross-section of connected
conductors solid (max) |
35.00
mm2 |
|
|
Cross-section of connected
conductors stranded (min) |
1.00
mm2 |
|
|
Cross-section of connected
conductors stranded (max) |
25.00
mm2 |
|
|
Fault indication |
red
indication field |
|
|
Degree of protection |
IP
20 |
|
|
Range of ambient temperatures
(min/max) |
-40
/ 80 °C |
|
|
Humidity |
5
- 95 % |
|
|
According to standard |
EN
61643-11:2012, IEC 61643-11:2011 |
|
|
ETIM Class |
EC000941 |
|
|
Plug module |
SLP-385
V/0 |
|
|
Customs tariff number |
85363030 |
|
|
EAN |
8595090519522 |
Dimensions:
Replacement module: SLP-385 V/0
Surge arrester , TN with fluctuating voltage , 120 kA (8/20 µs)
