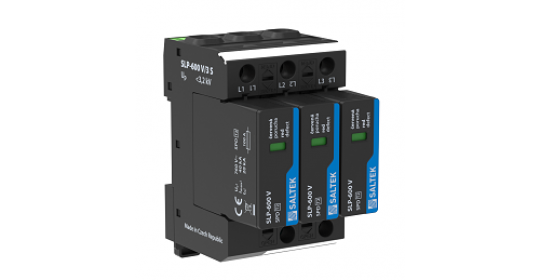

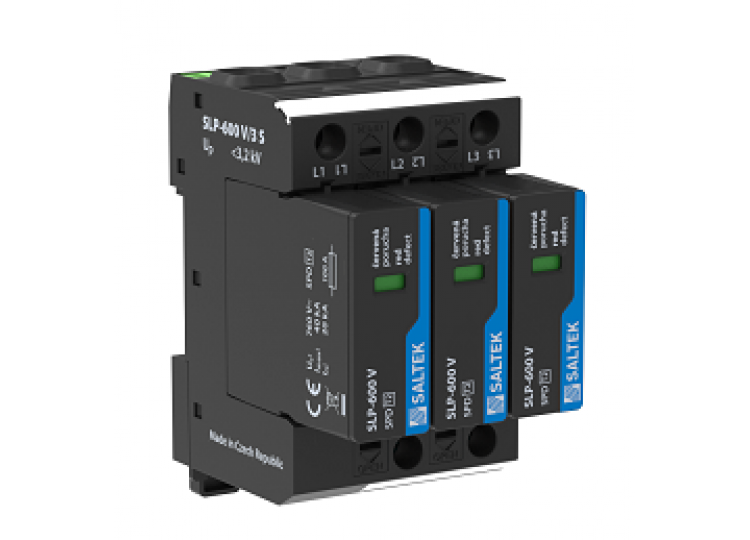

SALTEK - SLP-600 V/3 S - SPD - low voltage| DAFNIA

Pluggable module, visual fault signalling, module locking.

Three-pole varistor surge arrester.
Installation to LV installations, especially to sub-distribution boards in TN, IT systems.
For protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Suitable for the protection of wind farms and inverters, remote fault signalling.

Specifications:

ameter name		Parameter value
Type of SPD		T2
Mounting		DIN rail 35 mm
Nominal voltage	U_n	230,00–690,00 V AC
Maximum operating voltage	U_c	760.00 V AC
Maximum operating voltage of varistor		880 V AC
Type of network		TN
Maximum overcurrent protection		100 A gL/gG
Short-circuit current rating	I_SCCR	25.0 kA
Nominal discharge current (8/20 µs)	I_n	20.00 kA
Maximum discharge current (8/20 µs)	I_max	40.00 kA
Voltage protection level	U_p	3.20 kV
Voltage protection level at 5 kA	U_p	2.70 kV
Response time	t_a	25 ns
Cross-section of connected conductors solid (min)		1.00 mm²
Cross-section of connected conductors solid (max)		35.00 mm²
Cross-section of connected conductors stranded (min)		1.00 mm²
Cross-section of connected conductors stranded (max)		25.00 mm²
Cross-section of remote indication conductors solid (max)		1.5 mm²
Cross-section of remote indication conductors stranded (max)		1.5 mm²
Fault indication		red indication field
Remote indication		potential-free change-over contact
Remote indication contacts		250V/0,5A AC,250V/0,1A DC
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-11:2012, IEC 61643-11:2011
ETIM Class		EC000941
Plug module		SLP-600 V/0
Customs tariff number		85363030
EAN		8595090563051
